Luggage Compartment Lid Trim Panel
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 40110 | Luggage compartment lid |
| 2 | W706635 | Luggage compartment lid trim panel pin-type retainer (10 required) |
| 3 | 45594 | Luggage compartment lid trim panel |
- Open the luggage compartment lid.
- Remove the luggage compartment lid trim panel and pin-type retainers.

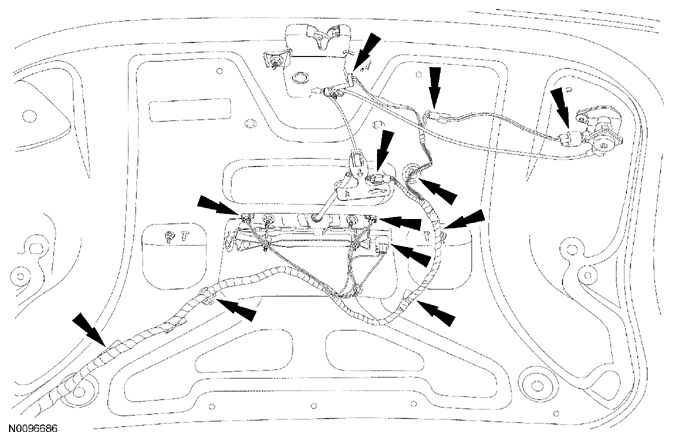

- Disconnect the electrical connectors and remove the wiring harness clips from the luggage compartment lid.
- Remove the luggage compartment lid lift struts.
- With the help of an assistant, remove the hinge-to-luggage compartment lid nuts.
- To install, tighten to 25 Nm (18 lb-ft).
- With the help of an assistant, remove the luggage compartment lid.
- To install, reverse the removal procedure.
- Adjust the luggage compartment lid as necessary. For additional information, refer to LUGGAGE COMPARTMENT LID ALIGNMENT in this service information.
