Radiator Grille - Milan
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

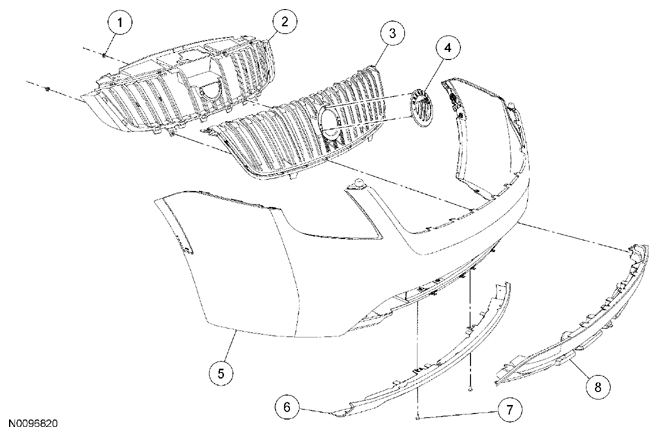

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W707501 | Upper radiator grille nut (2 required) |
| 2 | 8A164 | Upper radiator grille reinforcement |
| 3 | 8150 | Upper radiator grille |
| 4 | 8B262 | Badge |
| 5 | 17C831 | Front bumper cover |
| 6 | 8150-C | Front bumper cover valance |
| 7 | W706805 | Front bumper cover valance screw (2 required) |
| 8 | 8150-D | Lower radiator grille |
All radiator grilles
- Remove the front bumper cover. For additional information, refer to
BUMPER SYSTEM -- FUSION, MILAN & MKZ
article.
Upper radiator grilles
- Remove the upper radiator grille nuts.
- Remove the upper radiator grille.
- Press the upper radiator grille tabs outward to release the upper radiator grille from the bumper cover.
Lower radiator grilles
- Press the 12 tabs inward on the lower radiator grille to release it from the front bumper cover.
- Remove the lower radiator grille.
All radiator grilles
- To install, reverse the removal procedure.
