Radiator Grille - Fusion
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

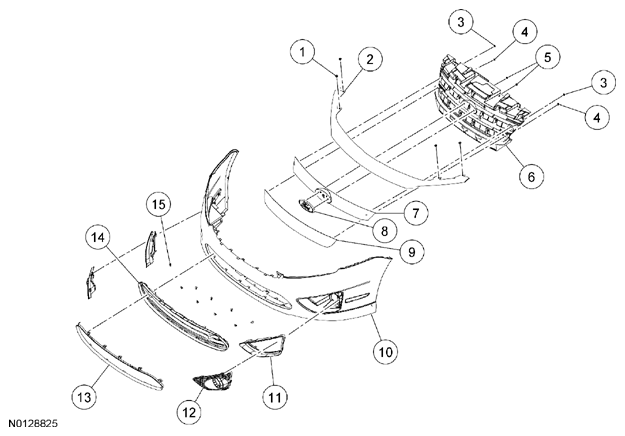

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 50980 | Pin-type retainer (4 required) |
| 2 | 8150-A | Upper radiator grille |
| 3 | W707501 | Center radiator grille nuts (2 required) |
| 4 | W707501 | Lower radiator grille nuts (2 required) |
| 5 | W707501 | Badge nut (2 required) |
| 6 | 8A164 | Radiator grille reinforcement |
| 7 | 8150-B | Center radiator grille |
| 8 | 8B262 | Badge |
| 9 | 8150-C | Lower radiator grille |
| 10 | 17C831 | Front bumper cover |
| 11 | 17K946-J LH/17K947-J RH | Fog lamp bezel moulding |
| 12 | 17K946-F LH/17K947-F RH | Fog lamp bezel |
| 13 | 17K945 | Lower bumper grille moulding |
| 14 | 8150-D | Lower bumper grille |
| 15 | - | Lower bumper grille moulding clip (9 required) (part of 17K945) |
Upper radiator grille
- Remove the four pin-type retainers.
- Press the tabs to release the upper radiator grille from the radiator grille reinforcement and remove the upper radiator grille.
Center and lower radiator and lower bumper grilles
- Remove the front bumper cover. For additional information, refer to
BUMPER SYSTEM -- FUSION, MILAN & MKZ
article.
Center and lower radiator grilles
- Press the tabs to release the radiator grille reinforcement and remove the radiator grille reinforcements.
Center radiator grille
- Remove the center radiator grille nuts.
- Remove the center radiator grille.
Lower radiator grille
- Remove the lower radiator grille nuts.
- Remove the lower radiator grille.
Lower bumper grille
- Remove the lower bumper grille moulding clips.
- Remove the lower bumper grille moulding.
- Press the tabs to release the lower bumper grille from the front bumper cover.
- Remove the lower bumper grille from the bumper cover.
All vehicles
- To install, reverse the removal procedure.
