Motor Electronics Cooling System (MECS) Expansion Tank

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

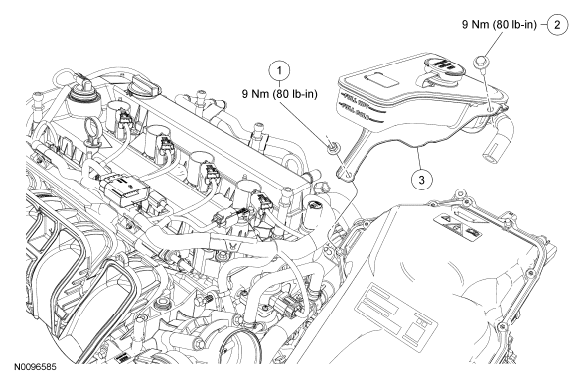

Fig 1: MECS Expansion Tank Replacement Components With Torque Specifications
G06272513Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W701152 Motor Electronics Cooling System (MECS) coolant expansion tank nut
2 W505424 MECS coolant expansion tank bolt
3 8C045 MECS coolant expansion tank
