Engine Wire Harness

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

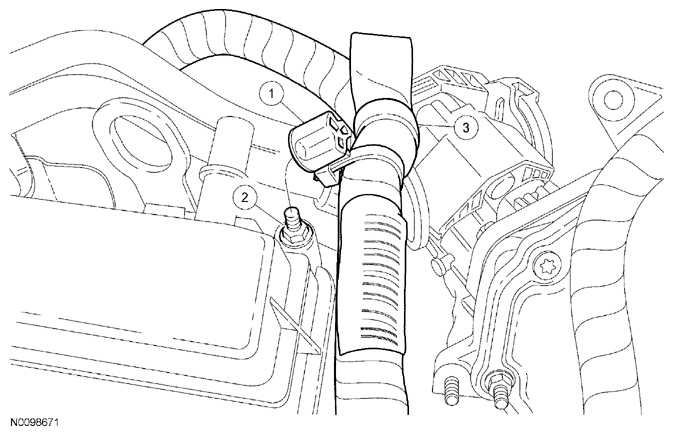

Fig 1: Identifying Engine Wire Harness Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Engine wire harness retainer (part of 12C508)
2	6C295	Valve cover stud
3	12C508	Engine wire harness
