Motor Electronics Cooler

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

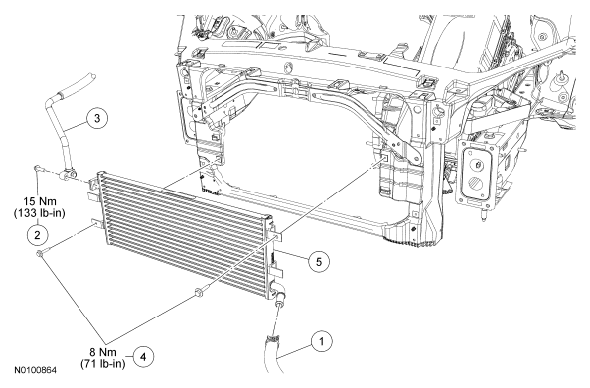

Fig 1: Motor Electronics Cooler Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	8B273	Motor Electronics Cooling System (MECS) radiator inlet hose
2	N808349	MECS radiator outlet tube bolt
3	8B274	MECS radiator outlet hose
4	W711685-S	MECS radiator bolts
5	8005	MECS radiator

Drain the Motor Electronics Cooling System (MECS). For additional information, refer to MOTOR ELECTRONICS COOLING SYSTEM DRAINING AND FILLING in this service information.
Remove the 4 bolts and the 2 retainers and position the front grille aside far enough to gain access to the MECS radiator. For additional information, refer to BUMPER SYSTEM -- FUSION, MILAN & MKZ article.

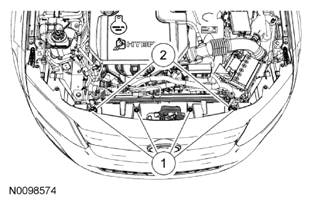

Fig 2: Identifying Front Grille With Fasteners
Courtesy of FORD MOTOR CO.
Remove the bolt and remove the upper MECS radiator tube from the MECS cooler.
- To install, tighten to 15 Nm (133 lb-in).

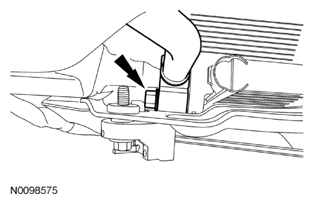

  Fig 3: Locating Upper MECS Radiator Tube Bolt
  Courtesy of FORD MOTOR CO.
Remove the radiator splash shield.
1. Remove the 6 screws.
2. Remove the 4 retainers.

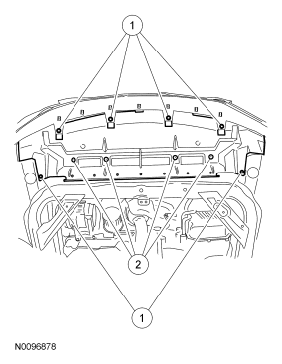

  Fig 4: Identifying Radiator Splash Shield Screws And Retainers
  Courtesy of FORD MOTOR CO.
Compress the constant tension clamp and disconnect the MECS radiator hose from the MECS radiator.

Fig 5: Locating MECS Radiator Hose Clamp
Courtesy of FORD MOTOR CO.
Remove the MECS radiator bolts and remove the radiator.
- To install, tighten to 8 Nm (71 lb-in).

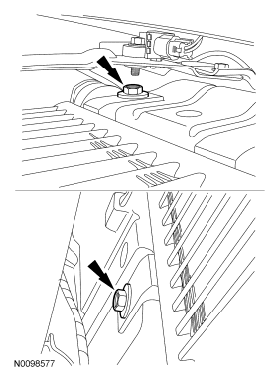

  Fig 6: Locating MECS Radiator Bolts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
