Washer Pump and Reservoir - Non-Hybrid
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

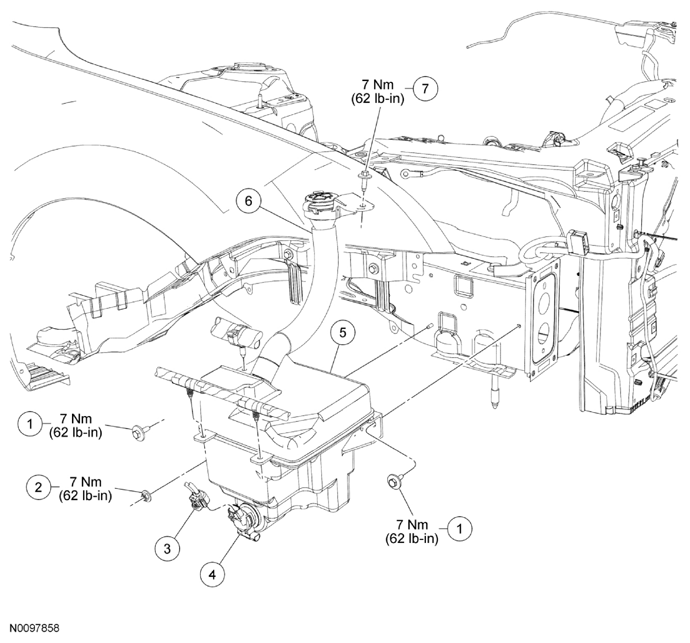

Fig 1: Exploded View Of Washer Pump And Reservoir Components With Torque Specifications - Non-Hybrid
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W707399 | Windshield washer reservoir bolts (2 required) |
| 2 | W702751 | Windshield washer reservoir nut |
| 3 | 14A005 | Windshield washer pump electrical connector |
| 4 | 17664 | Windshield washer pump |
| 5 | 17618 | Windshield washer reservoir |
| 6 | 17618 | Windshield washer reservoir filler neck |
| 7 | W500214 | Windshield washer reservoir filler neck retaining bolt |
- For additional information, refer to the appropriate procedures in this service information.
