Seat Recliner Motor: Removal
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The manual recliners and power recliners are serviced as part of the backrest frame.
- Remove the front seat backrest. For additional information, refer to SEAT BACKREST - FRONT in this service information.
- Detach the 2 pin-type retainers and trim cover flaps from the recliners.
- Disengage the backrest cover lower J-strips.
- Invert the backrest cover up the backrest, remove all rows of hog rings (if equipped) from the front of the backrest trim cover and separate the hook-and-loop strips.

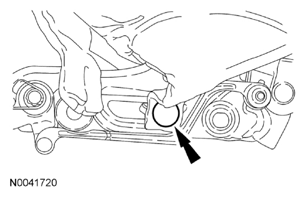

- Remove the one-way push clip on the RH side of the power recliner. Slide the recliner shaft out from the LH side of the seat enough to clear the RH recliner and power recline motor.
- Disconnect the electrical connector, remove the screw and the power recline motor.
NOTE:
Use care when separating the backrest cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the backrest foam pad.
