2.5L and 3.0L Engines
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

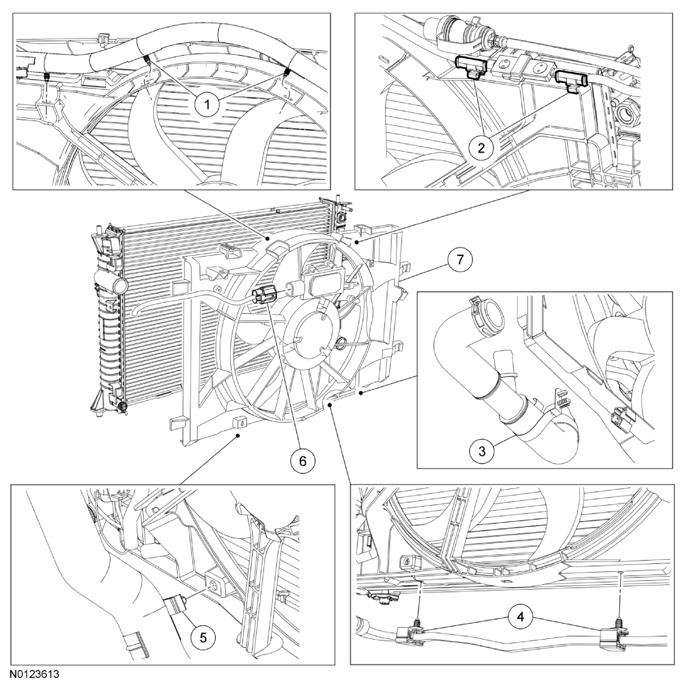

| Item | Part Number | Description |
|---|---|---|
| 1 | 13A506 | Wiring harness retainers |
| 2 | 14A163 | Block heater retainers (part of 6B018) |
| 3 | - | RH lower radiator hose pin-type retainer (part of 8B273) |
| 4 | 256844 | Transmission fluid cooler tube retaining clips (automatic transmission only) (part of 7R081) |
| 5 | - | LH lower radiator hose pin-type retainer (3.0L only) |
| 6 | 14A464 | Cooling fan motor electrical connector |
| 7 | 8C607 | Cooling fan motor and shroud |
- Detach all the wiring harness retainers from the cooling fan and shroud.
- If equipped, detach the 2 block heater wiring retainers from the cooling fan motor and shroud.
- Remove the splash shield.
- Detach the RH lower radiator hose pin-type retainer from the cooling fan motor and shroud.
- If equipped, detach the 2 transmission cooler tube retainers from the cooling fan motor and shroud.
- If equipped, detach the LH lower radiator hose pin-type retainer from the cooling fan motor and shroud.
- Disconnect the cooling fan electrical connector.
- Detach the pin-type retainer.
- Release the 2 tabs and remove the cooling fan motor and shroud.
- To install, reverse the removal procedure.
NOTE:
LH shown in the illustration, RH similar.
