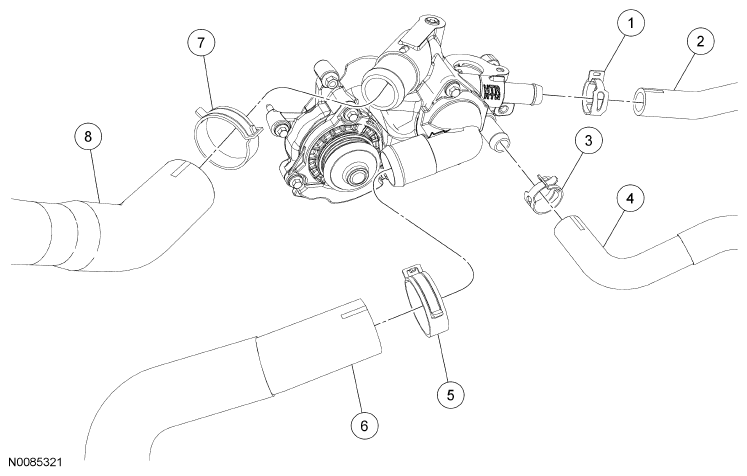

Coolant Hoses
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W532958 |
Heater hose clamp |
| 2 |
18K580 |
Heater outlet hose |
| 3 |
W532958 |
Heater hose clamp |
| 4 |
18K579 |
Heater inlet hose |
| 5 |
W525871 |
Lower radiator hose clamp |
| 6 |
8B273 |
Lower radiator hose |
| 7 |
W525872 |
Upper radiator hose clamp |
| 8 |
8B274 |
Upper radiator hose |
