View 2 of 2

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

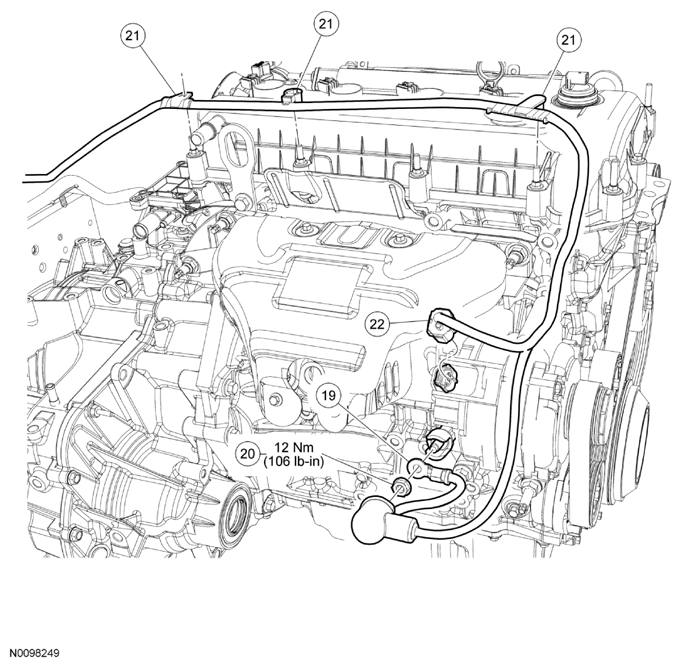

Fig 1: Exploded View Of Battery Cables Components With Torque Specifications - 2.5L (2 Of 2)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
19	-	Generator B+ terminal (part of 14B060)
20	W706414	Generator B+ terminal nut
21	-	Battery cable locator (part of 14B060)
22	-	Generator electrical connector (part of 14B060)
