Vacuum Sensor - 3.0L All-Wheel Drive (AWD) and 3.5L Vehicles
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

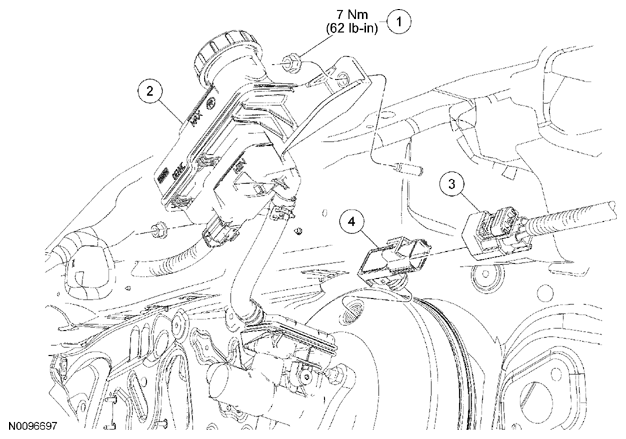

Fig 1: Exploded View Of Vacuum Sensor Components With Torque Specifications - 3.0L All-Wheel Drive (AWD) And 3.5L Vehicles
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W520111 | Remote brake fluid reservoir nut (2 required) |
| 2 | 2K478 | Remote brake fluid reservoir |
| 3 | - | Vacuum sensor electrical connector (part of 14290) |
| 4 | 2C444 | Vacuum sensor |
- For additional information, refer to the appropriate procedures in this service information.
