Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the hood latch. For additional information, refer to HOOD LATCH  in this article.
  3. Remove the pin-type retainers.

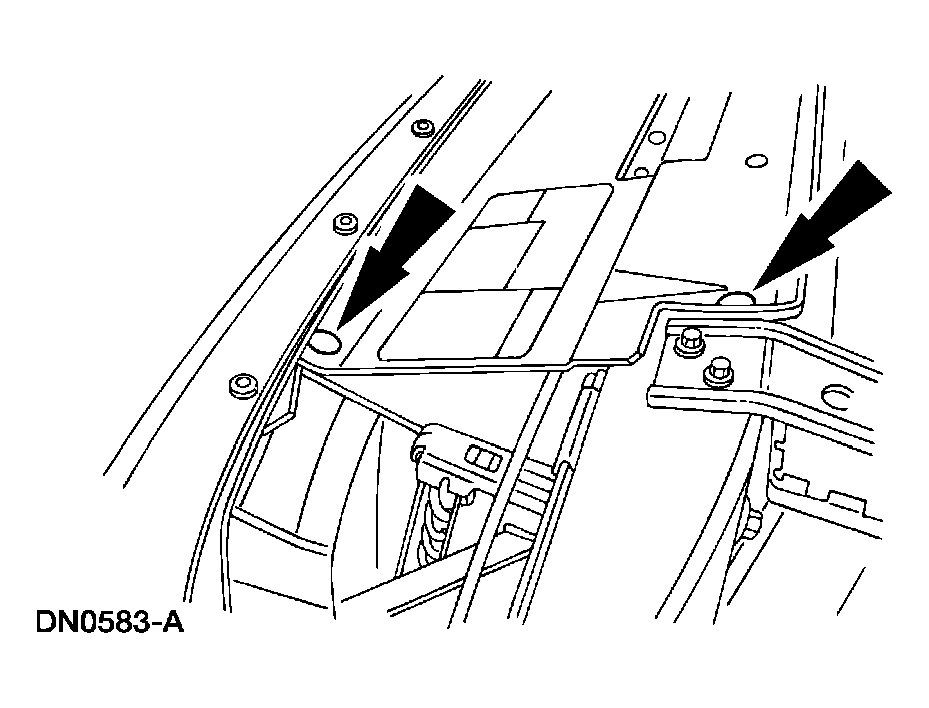

    Fig 1: Removing Pin-Type Retainers
    G03911811Courtesy of FORD MOTOR CO.
  4. Position the air deflector aside to reveal the hood latch release cable guide.
  5. Remove the hood latch release cable guide.
    Fig 2: Removing Hood Latch Release Cable Guide
    G03911812Courtesy of FORD MOTOR CO.
  6. Remove the remaining hood latch release cable guides.
    Fig 3: Removing Remaining Hood Latch
    G03911813Courtesy of FORD MOTOR CO.
  7. Remove the powertrain control module (PCM). For additional information, refer to ELECTRONIC ENGINE CONTROLS - GASOLINE ENGINES (gas) or ELECTRONIC ENGINE CONTROLS - DIESEL ENGINE (diesel).
  8. Remove the A-pillar lower trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  9. Remove the nuts.
    Fig 4: Removing Nuts
    G03911814Courtesy of FORD MOTOR CO.
  10. Lower the hood latch release/park brake bracket from the vehicle.
  11. Remove the hood latch release cable from the handle.
    • Release the cable conduit.
    • Remove the cable.
  12. Remove the hood latch release cable and dash panel grommet through the front of the vehicle.
  13. To install, reverse the removal procedure.
