Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (1 of 2)
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

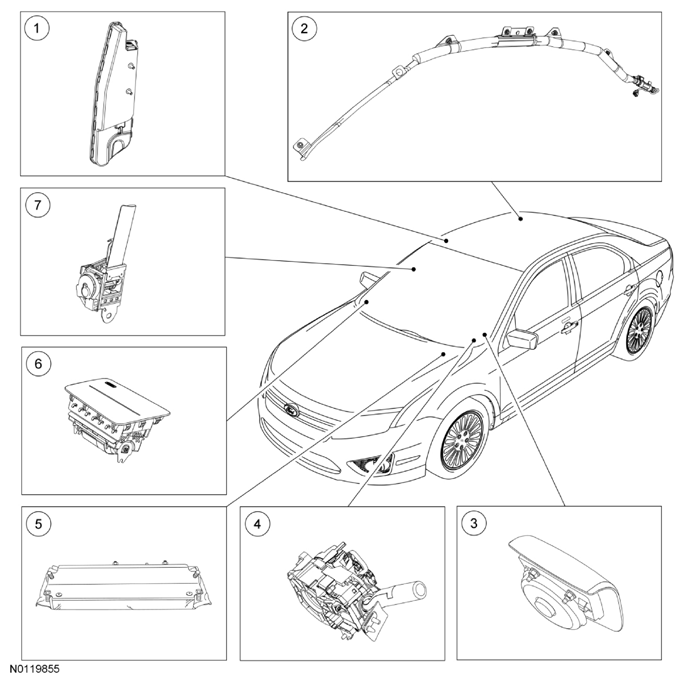

Fig 1: Identifying Air Bag And Safety Belt Pretensioner Supplemental Restraint System Components (1 Of 2)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 611D10 RH/611D11 LH | Seat side air bag module |
| 2 | 042D94 RH/042D95 LH | Side air curtain modules |
| 3 | 043B13 | Driver air bag module |
| 4 | 14A664 | Clockspring |
| 5 | 045J77 | Driver knee air bag module (hybrid vehicles only) |
| 6 | 044A74 | Passenger air bag module assembly |
| 7 | 611B08 RH/611B09 LH | Safety belt retractor pretensioner |
