Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Support the hood using a prop rod.

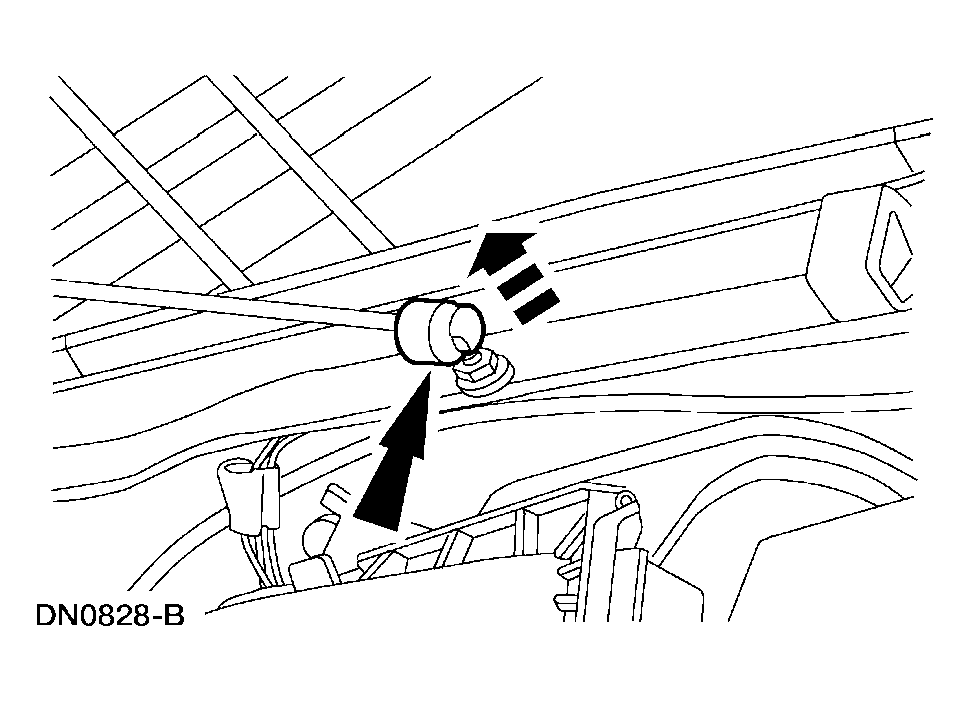

Disconnect the hood lift (16C826).

Fig 1: Disconnecting Hood Lift
Courtesy of FORD MOTOR CO.
Remove the headlights and turn signals. For additional information, refer to EXTERIOR LIGHTING .

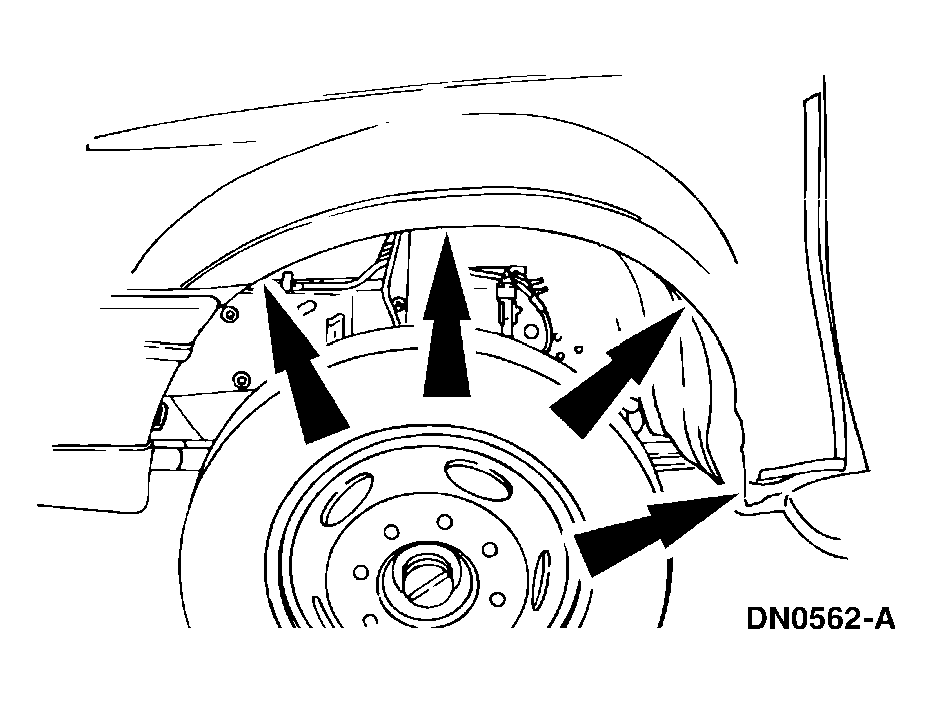

Remove the screws at the lower edge of the front fender (16006) securing the splash shield.

Fig 2: Removing Screws At Lower Edge Of Front Fender
Courtesy of FORD MOTOR CO.
Remove the running board, if so equipped. For additional information, refer to EXTERIOR TRIM AND ORNAMENTATION .

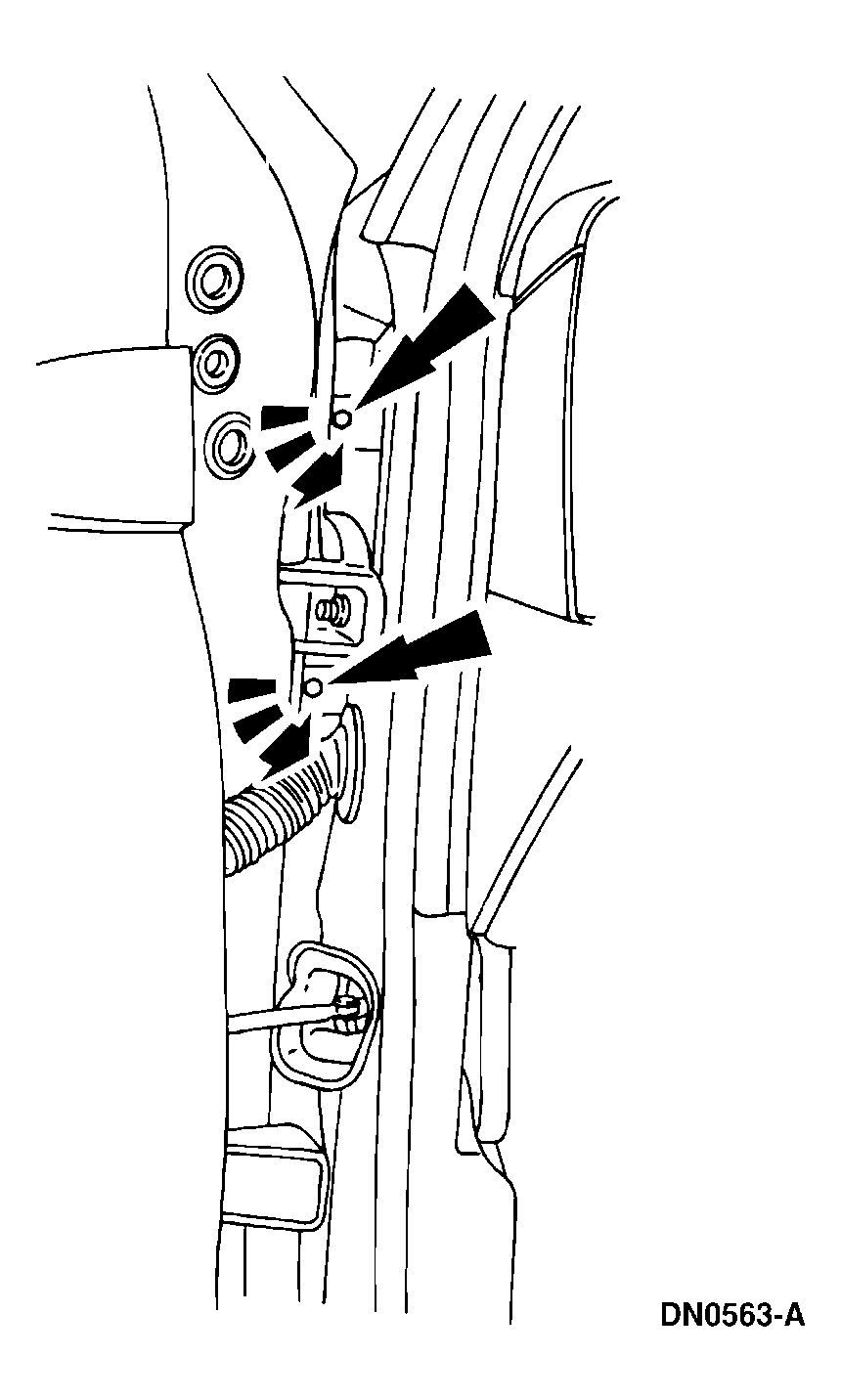

Remove the push pins at the rear lower edge of the front fender.
Remove the bolts securing the lower rear of the front fender.

Fig 3: Removing Bolts Securing Lower Rear Of Front Fender
Courtesy of FORD MOTOR CO.
Remove the fender-to-radiator grille opening support retaining bolts.

Fig 4: Removing Fender-To-Radiator Grille Opening Support Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove the fender-to-radiator support retaining screws.

Fig 5: Removing Fender-To-Radiator Support Retaining Screws
Courtesy of FORD MOTOR CO.
Open the door, then remove the fender retaining bolts.

Fig 6: Removing Fender Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove the upper fender retaining bolts.

Fig 7: Removing Upper Fender Retaining Bolts
Courtesy of FORD MOTOR CO.
Remove the hood support bolt.

Fig 8: Removing Hood Support Bolt
Courtesy of FORD MOTOR CO.
Remove the front fender.
To install, reverse the removal procedure.
