Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the windshield wiper arms. For additional information, refer to WIPERS AND WASHERS .
Remove the radio antenna mast.
- Lift upward on cover.

  Fig 1: Removing Radio Antenna Mast
  Courtesy of FORD MOTOR CO.
Remove the cowl top vent panel retaining screws.

Fig 2: Removing Cowl Top Vent Panel Retaining Screws
Courtesy of FORD MOTOR CO.
Raise the hood (16612).
Disconnect the windshield washer hose.

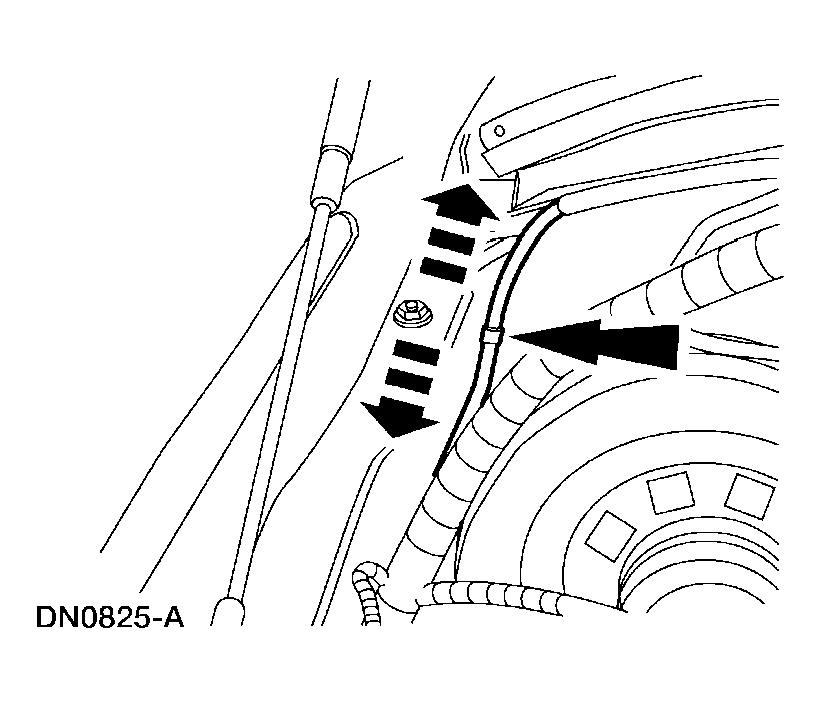

Fig 3: Disconnecting Windshield Washer Hose
Courtesy of FORD MOTOR CO.
Remove the cowl panel weatherstrip.

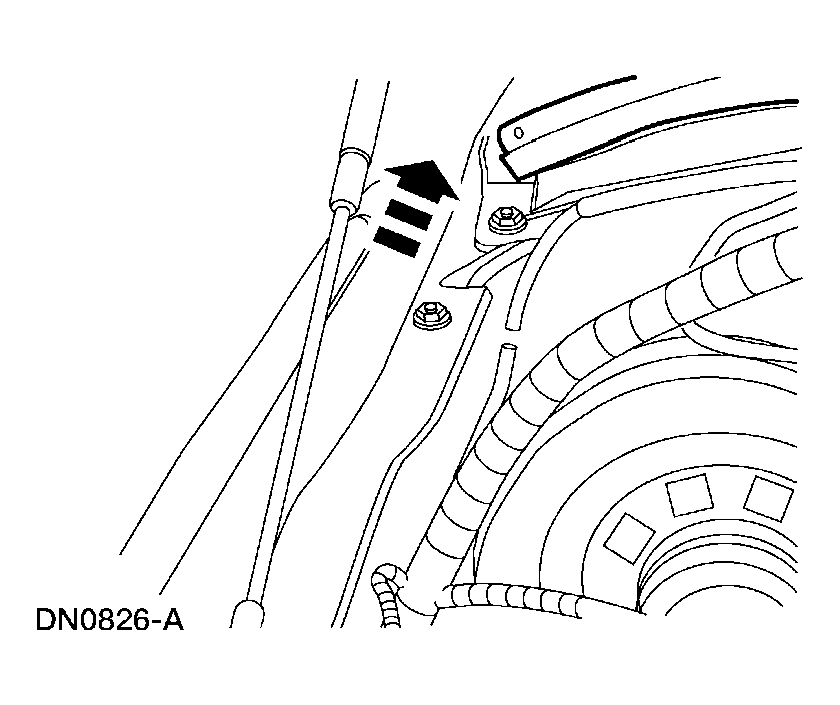

Fig 4: Removing Cowl Panel Weatherstrip
Courtesy of FORD MOTOR CO.
Remove and discard the cowl top vent panel push pins.

Fig 5: Removing And Discarding Cowl Top Vent Panel Push Pins
Courtesy of FORD MOTOR CO.

NOTE: Remove the cowl top vent panel from the center to avoid damage to the locating pins at each outer end of the cowl panels.

Fig 6: Raising Cowl Top Vent Panel

Courtesy of FORD MOTOR CO.

Raise the cowl top vent panel.
Remove the cowl top vent panel.
To install, reverse the removal procedure.
