Removal and Installation

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Remove the engine coolant degas bottle. For additional information, refer to ENGINE COOLING SYSTEM -- (HYBRID) article.
Install the Engine Support Bar to the front and rear engine lifting eyes.

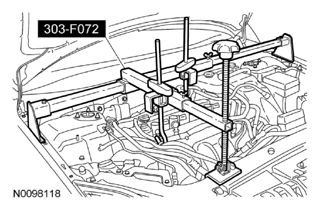

Fig 1: View Of Engine Support Bar On Front And Rear Engine Lifting Eyes
Courtesy of FORD MOTOR CO.
Remove the engine mount bracket bolt.
- To install, tighten to 115 Nm (85 lb-ft).
Use the Engine Support Bar to raise the engine 25 mm (0.98 in).

Fig 2: View Of Engine Support Bar On Front And Rear Engine Lifting Eyes
Courtesy of FORD MOTOR CO.
Remove the bolt and the ground strap from the engine mount bracket.
- Tighten to 10 Nm (89 lb-in).
Remove the 3 nuts and the engine mount bracket.
- To install, tighten to 103 Nm (76 lb-ft).
Remove the 2 bolts and nut and the engine mount.
- To install, tighten to 55 Nm (41 lb-ft).
To install, reverse the removal procedure.
