Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools or severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the RF wheel and tire. For additional information, refer to WHEELS & TIRES article.
  3. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE - FUSION HYBRID, MILAN HYBRID & MKZ HYBRID article.
  4. Remove the valve cover. For additional information, refer to VALVE COVER  in this service information.
  5. NOTE: Failure to position the No. 1 piston at Top Dead Center (TDC) can result in damage to the engine. Turn the engine in the normal direction of rotation only.
    Fig 1: Turning Crankshaft Clockwise And Identifying Crankshaft Pulley Hole
    G07781904Courtesy of FORD MOTOR CO.
  6. Using the crankshaft pulley bolt, turn the crankshaft clockwise to position the No. 1 piston at Top Dead Center (TDC).
    • The hole in the crankshaft pulley should be in the 6 o'clock position.
  7. NOTE: The Camshaft Alignment Plate is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
    NOTE: The camshaft timing slots are offset. If the Camshaft Alignment Plate cannot be installed, rotate the crankshaft one complete revolution clockwise to correctly position the camshafts.

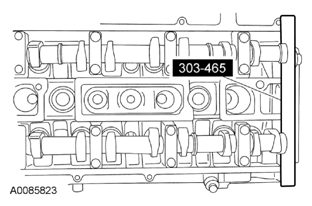

    Fig 2: Identifying Camshaft Alignment Plate
    G07781905Courtesy of FORD MOTOR CO.
  8. Install the Camshaft Alignment Plate in the slots on the rear of both camshafts.
  9. Remove the engine plug bolt.

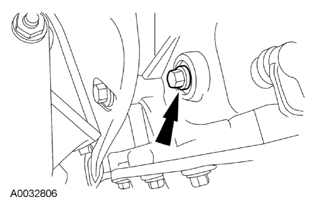

    Fig 3: Locating Engine Plug Bolt
    G07781906Courtesy of FORD MOTOR CO.
  10. NOTE: The Crankshaft TDC Timing Peg will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.

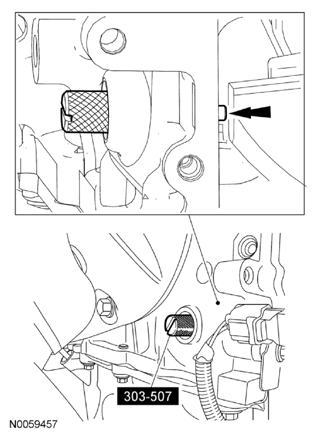

    Fig 4: Identifying Crankshaft TDC Timing Peg
    G07781907Courtesy of FORD MOTOR CO.
  11. Install the Crankshaft TDC Timing Peg.
  12. NOTE: The crankshaft must remain in the Top Dead Center (TDC) position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crankshaft Damper Holding Tool, and the bolt should be removed using an air impact wrench (1/2-in drive minimum).
    NOTE: The crankshaft sprocket diamond washer may come off with the crankshaft pulley. The diamond washer must be replaced. Remove and discard the diamond washer. If the diamond washer is not installed, engine damage may occur.
  13. Use the Crankshaft Damper Holding Tool and a suitable 1/2-in drive hand tool to hold the crankshaft pulley. Use an air impact wrench to remove the crankshaft pulley bolt.
Fig 5: Identifying Crankshaft Pulley Bolt And Special Tool
G07781908Courtesy of FORD MOTOR CO.
