Section 1664 (Engine Mechanical - 2.5L (Hybrid)): Disassembly: Engine

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G07782138
 Alignment Plate, Camshaft
303-465 (T94P-6256-CH)
G07782139
 Engine Stand
014-00232 or equivalent
G07782140
 2,200# Floor Crane, Fold Away
300-OTC1819E or equivalent
G07782141
 Holding Tool, Crankshaft Damper
303-1416
G07782142
 Installer, Connecting Rod
303-462 (T94P-6136-AH)
G07782143
 Remover, Oil Seal
303-409 (T92C-6700-CH)
G07782144
 Spreader Bar
303-D089 (D93P-6001-A3) or equivalent
G07782145
 Timing Peg, Crankshaft TDC
303-507
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools or severe engine damage may occur.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: Due to the precision fit and timing of the balancer shaft assembly, it cannot be removed from the engine block.
NOTE: For additional information, refer to the exploded views under engine ASSEMBLY  in this service information.
  1. Remove the 6 bolts and the flywheel.
    Fig 1: Locating Flywheel Bolts
    G07782146Courtesy of FORD MOTOR CO.
  2. Mount the engine on a suitable engine stand.

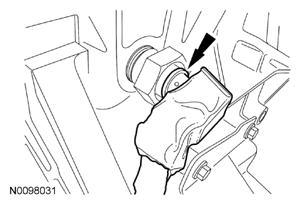

  3. If equipped, disconnect the engine block heater.
    Fig 2: Locating Engine Block Heater
    G07782147Courtesy of FORD MOTOR CO.
  4. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.
    • Detach the connector from the engine wiring harness connector bracket.
    Fig 3: Locating Heated Oxygen Sensor (HO2S) Electrical Connector
    G07782148Courtesy of FORD MOTOR CO.
  5. Disconnect the Catalyst Monitor Sensor (CMS) electrical connector.
    Fig 4: Locating Catalyst Monitor Sensor (CMS) Electrical Connector
    G07782149Courtesy of FORD MOTOR CO.
  6. Disconnect the Crankshaft Position (CKP) sensor electrical connector.
    Fig 5: Locating Crankshaft Position Sensor Electrical Connector
    G07782150Courtesy of FORD MOTOR CO.
  7. Remove the bolt and the engine wiring harness connector bracket.
    Fig 6: Locating Engine Wiring Harness Connector Bracket And Mounting Bolt
    G07782151Courtesy of FORD MOTOR CO.
  8. Detach the 2 engine wiring harness pin-type retainers.
    Fig 7: Locating Engine Wiring Harness Pin-Type Retainers
    G07782152Courtesy of FORD MOTOR CO.
  9. Remove the 6 bolts and the catalytic converter manifold heat shield.
    Fig 8: Locating Catalytic Converter Manifold Heat Shield Mounting Bolts
    G07782153Courtesy of FORD MOTOR CO.
  10. Remove the 2 catalytic converter manifold bracket-to-engine block bolts.

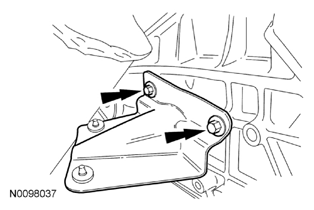

    Fig 9: Locating Catalytic Converter Manifold Bracket-To-Engine Block Bolts
    G07782154Courtesy of FORD MOTOR CO.
  11. Remove the 7 nuts and the catalytic converter manifold.
    • Discard the nuts and the catalytic converter manifold gasket.
    Fig 10: Locating Catalytic Converter Manifold Mounting Nuts
    G07782155Courtesy of FORD MOTOR CO.

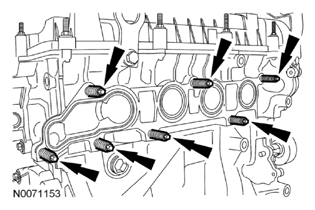

  12. Remove and discard the 7 cylinder head studs.
    Fig 11: Identifying Exhaust Manifold Studs
    G07782156Courtesy of FORD MOTOR CO.

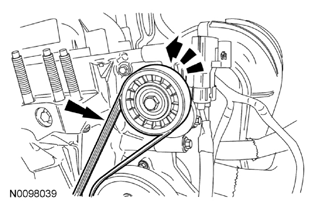

  13. Rotate the accessory drive belt tensioner counterclockwise and remove the accessory drive belt.
    Fig 12: Rotating Accessory Drive Belt Tensioner Counterclockwise
    G07782157Courtesy of FORD MOTOR CO.
  14. Detach the vehicle high voltage electrical system electrical connector retainer from the accessory drive belt tensioner.

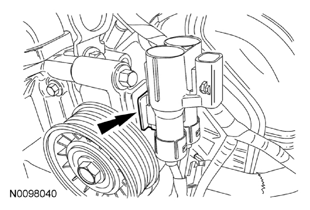

    Fig 13: Locating Vehicle High Voltage Electrical System Electrical Connector Retainer
    G07782158Courtesy of FORD MOTOR CO.
  15. Remove the 3 bolts and the accessory drive belt tensioner.
    Fig 14: Locating Accessory Drive Belt Tensioner And Mounting Bolts
    G07782159Courtesy of FORD MOTOR CO.
  16. Disconnect the electronic throttle control electrical connector.
    Fig 15: Locating Electronic Throttle Control Electrical Connector
    G07782160Courtesy of FORD MOTOR CO.

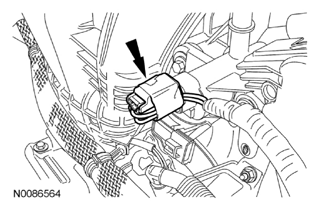

  17. Disconnect the Evaporative Emission (EVAP) canister purge valve electrical connector.
    Fig 16: Locating Evaporative Emission Canister Purge Valve Electrical Connector
    G07782161Courtesy of FORD MOTOR CO.

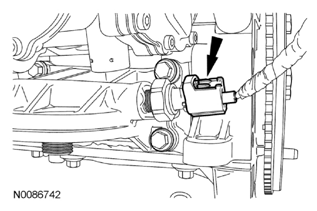

  18. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.
    Fig 17: Locating Engine Oil Pressure (EOP) Switch Electrical Connector
    G07782162Courtesy of FORD MOTOR CO.
  19. Disconnect the Manifold Absolute Pressure (MAP) sensor electrical connector.
    Fig 18: Locating Manifold Absolute Pressure Sensor Electrical Connector
    G07782163Courtesy of FORD MOTOR CO.
  20. Disconnect the Knock Sensor (KS) electrical connector and detach the electrical connector pin-type retainer from the intake manifold.
    Fig 19: Locating Knock Sensor Electrical Connector And Electrical Connector Pin-Type Retainer
    G07782164Courtesy of FORD MOTOR CO.
  21. Disconnect the A/C compressor electrical connector.
    Fig 20: Locating A/C Compressor Electrical Connector
    G07782165Courtesy of FORD MOTOR CO.
  22. Remove the 3 bolts and the A/C compressor.
    Fig 21: Locating A/C Compressor Mounting Bolts
    G07782166Courtesy of FORD MOTOR CO.

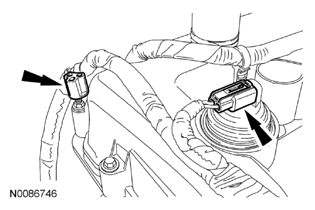

  23. Disconnect the Variable Camshaft Timing (VCT) oil control solenoid electrical connector and detach the wiring harness retainer from the valve cover stud bolt.
    Fig 22: Locating VCT Oil Control Solenoid Electrical Connector And Wiring Harness Retainer
    G07782167Courtesy of FORD MOTOR CO.
  24. Detach the 3 wire harness pin-type retainers.
    Fig 23: Locating Wire Harness Pin-Type Retainers
    G07782168Courtesy of FORD MOTOR CO.

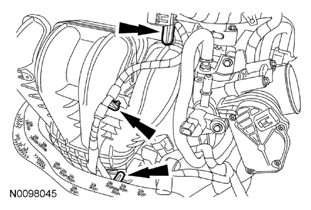

  25. Detach the 2 auxiliary coolant pump wiring retainers and the lower radiator hose retainer.
    Fig 24: Locating Auxiliary Coolant Pump Wiring Retainers And Lower Radiator Hose Retainer
    G07782169Courtesy of FORD MOTOR CO.
  26. Disconnect the auxiliary coolant pump hose and the upper radiator hose.
    Fig 25: Locating Auxiliary Coolant Pump Hose And Upper Radiator Hose
    G07782170Courtesy of FORD MOTOR CO.
  27. Disconnect the EGR coolant hose and the auxiliary coolant pump hose.
    • Remove the upper radiator hose and the auxiliary coolant pump as an assembly.

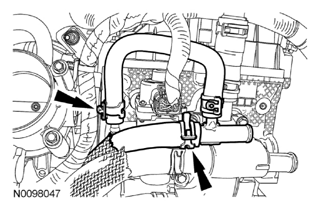

    Fig 26: Locating Upper Radiator Hose And Clamps
    G07782171Courtesy of FORD MOTOR CO.

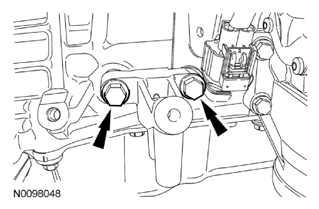

  28. Remove the 2 bolts and the A/C compressor bracket.
    Fig 27: Locating A/C Compressor Bracket And Mounting Bolts
    G07782172Courtesy of FORD MOTOR CO.

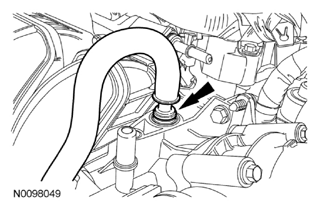

  29. Disconnect the vacuum hose from the intake manifold.
    Fig 28: Locating Intake Manifold Vacuum Hose
    G07782173Courtesy of FORD MOTOR CO.
  30. Remove the 2 bolts, the nut and the vacuum pump assembly.
    Fig 29: Locating Bolts, Nut And Vacuum Pump Assembly
    G07782174Courtesy of FORD MOTOR CO.

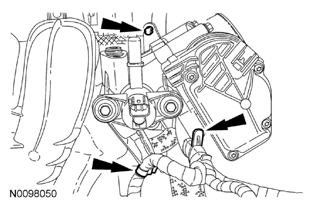

  31. Detach the 3 wire harness pin-type retainers from the intake manifold.
    Fig 30: Locating Intake Manifold Wire Harness Pin-Type Retainers
    G07782175Courtesy of FORD MOTOR CO.
    32. NOTE: The cylinder head side of the intake manifold is showing the location of the 7 bolts.
    Fig 31: Locating Intake Manifold Mounting Bolts
    G07782176Courtesy of FORD MOTOR CO.
  32. Remove the 7 bolts and position the intake manifold aside to access the PCV hose connector.
  33. Squeeze the 2 PCV hose connector tabs and disconnect the PCV hose from the intake manifold.
    • Remove the intake manifold.
    Fig 32: Locating Intake Manifold PCV Hose
    G07782177Courtesy of FORD MOTOR CO.

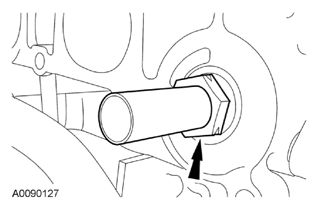

  34. Remove the EGR tube.
    Fig 33: Identifying EGR Tube
    G07782178Courtesy of FORD MOTOR CO.
  35. Disconnect the 4 fuel injector electrical connectors, radio capacitor electrical connector and the Camshaft Position (CMP) sensor electrical connector.

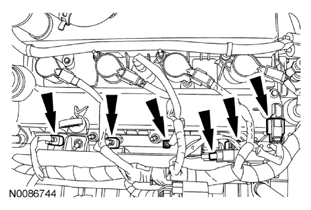

    Fig 34: Locating Fuel Injector Electrical Connectors, Radio Capacitor Electrical Connector And CMP Sensor Electrical Connector
    G07782179Courtesy of FORD MOTOR CO.
  36. Disconnect the 4 coil-on-plug electrical connectors.

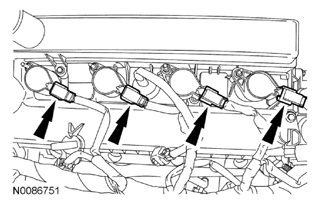

    Fig 35: Locating Coil-On-Plug Electrical Connectors
    G07782180Courtesy of FORD MOTOR CO.

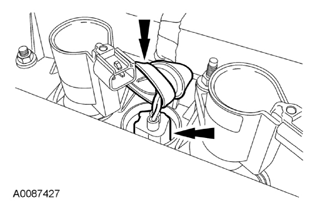

  37. Position the rubber boot aside and disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.
    Fig 36: Locating Rubber Boot And Cylinder Head Temperature Sensor Electrical Connector
    G07782181Courtesy of FORD MOTOR CO.

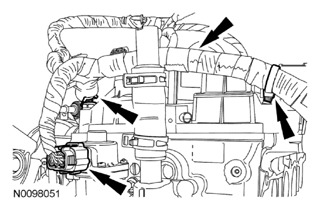

  38. Disconnect the EGR valve electrical connector and detach the 2 wiring harness retainers from the valve cover and stud bolt.
    • Remove the engine control wiring harness from the engine.
    Fig 37: Locating EGR Valve Electrical Connector And Wiring Harness Retainers
    G07782182Courtesy of FORD MOTOR CO.

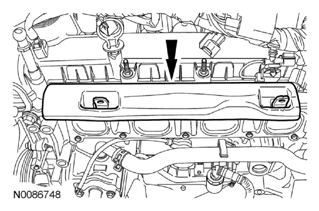

  39. Remove the fuel rail insulator.
    Fig 38: Identifying Fuel Rail Insulator
    G07782183Courtesy of FORD MOTOR CO.

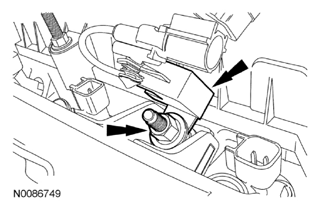

  40. Remove the nut and the radio capacitor.
    Fig 39: Locating Nut And Radio Capacitor
    G07782184Courtesy of FORD MOTOR CO.
  41. Remove the 2 stud bolts and the fuel rail with the fuel injectors.

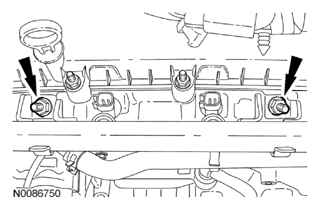

    Fig 40: Locating Fuel Injector Stud Bolts
    G07782185Courtesy of FORD MOTOR CO.
  42. Remove the 3 bolts and the coolant pump pulley.

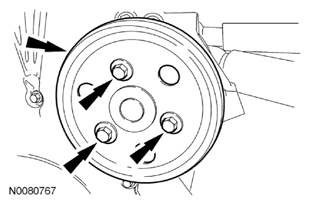

    Fig 41: Locating Bolts And Coolant Pump Pulley
    G07782186Courtesy of FORD MOTOR CO.
  43. Remove the 3 bolts and the coolant pump.
    Fig 42: Locating Coolant Pump And Bolts
    G07782187Courtesy of FORD MOTOR CO.
  44. Remove the 3 bolts and the thermostat housing.
    Fig 43: Locating Thermostat Housing And Mounting Bolts
    G07782188Courtesy of FORD MOTOR CO.

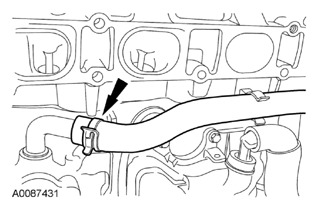

  45. Disconnect the bypass hose.
    Fig 44: Locating Coolant Hose And Clamp
    G07782189Courtesy of FORD MOTOR CO.

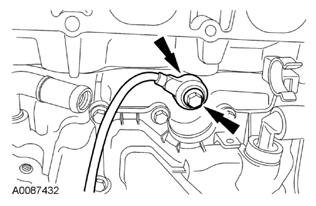

  46. Remove the bolt and the KS.
    Fig 45: Locating Knock Sensor And Mounting Bolt
    G07782190Courtesy of FORD MOTOR CO.
  47. Remove the 8 bolts and the crankcase vent oil separator.
    Fig 46: Locating Crankcase Vent Oil Separator Mounting Bolts
    G07782191Courtesy of FORD MOTOR CO.
  48. Remove the 4 bolts and the oil filter adapter.
    • Discard the gasket.
    Fig 47: Locating Oil Filter Adapter Bolts
    G07782192Courtesy of FORD MOTOR CO.

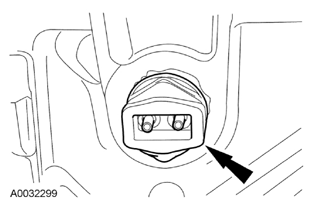

  49. If equipped, remove the block heater.
    Fig 48: Identifying Block Heater
    G07782193Courtesy of FORD MOTOR CO.

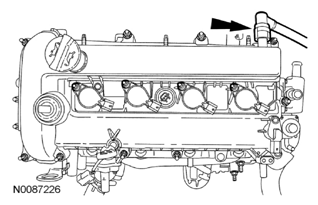

  50. Remove the crankshaft vent tube.
    Fig 49: Locating Crankshaft Vent Tube
    G07782194Courtesy of FORD MOTOR CO.
  51. Remove the 2 engine cover studs (one shown in illustration).
    Fig 50: Identifying Engine Cover Studs
    G07782195Courtesy of FORD MOTOR CO.
  52. Remove the 4 stud bolts and the coil-on-plugs from the valve cover.

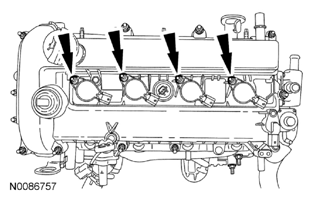

    Fig 51: Locating Coil-On-Plugs Stud Bolts
    G07782196Courtesy of FORD MOTOR CO.
  53. Remove the oil level indicator.
    Fig 52: Locating Oil Level Indicator
    G07782197Courtesy of FORD MOTOR CO.
  54. Remove the CHT sensor.

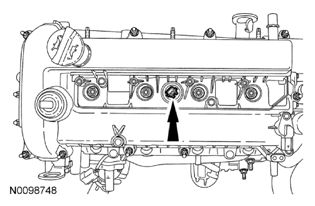

    Fig 53: Locating CHT Sensor
    G07782198Courtesy of FORD MOTOR CO.

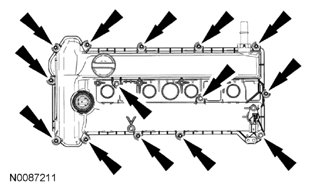

  55. Remove the bolts and the valve cover.
    Fig 54: Locating Retainers And Valve Cover
    G07782199Courtesy of FORD MOTOR CO.
    56. NOTE: Failure to position the No. 1 piston at Top Dead Center (TDC) can result in damage to the engine. Turn the engine in the normal direction of rotation only.
    Fig 55: Turning Crankshaft Clockwise And Identifying Crankshaft Pulley Hole
    G07782200Courtesy of FORD MOTOR CO.
  56. Using the crankshaft pulley bolt, turn the crankshaft clockwise to position the No. 1 piston at Top Dead Center (TDC).
    • The hole in the crankshaft pulley should be in the 6 o'clock position.

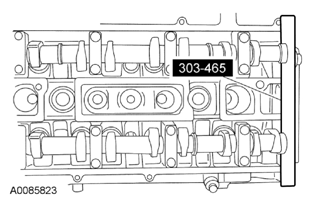

    57. NOTE: The Camshaft Alignment Plate 303-465 is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
    NOTE: The camshaft timing slots are offset. If the Camshaft Alignment Plate 303-465 cannot be installed, rotate the crankshaft one complete revolution clockwise to correctly position the camshafts.
    Fig 56: Identifying Camshaft Alignment Plate
    G07782201Courtesy of FORD MOTOR CO.
  57. Install the Camshaft Alignment Plate in the slots on the rear of both camshafts.

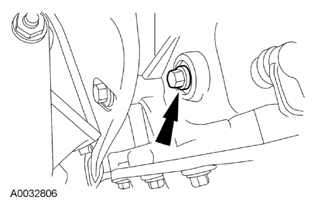

  58. Remove the engine plug bolt.
    Fig 57: Locating Engine Plug Bolt
    G07782202Courtesy of FORD MOTOR CO.

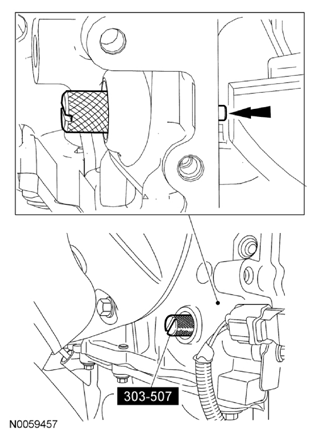

    59. NOTE: The Crankshaft TDC Timing Peg will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC position during the crankshaft pulley removal and installation.
    Fig 58: Identifying Crankshaft TDC Timing Peg
    G07782203Courtesy of FORD MOTOR CO.
  59. Install the Crankshaft TDC Timing Peg.
    60. NOTE: The crankshaft must remain in the Top Dead Center (TDC) position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crankshaft Damper Holding Tool and the bolt should be removed using an air impact wrench (1/2-in drive minimum).
    NOTE: The crankshaft sprocket diamond washer may come off with the crankshaft pulley. The diamond washer must be replaced; remove and discard the diamond washer. If the diamond washer is not installed, engine damage may occur.

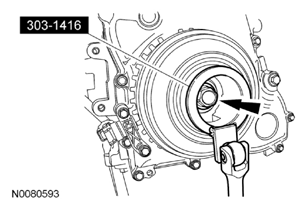

    Fig 59: Identifying Crankshaft Pulley Bolt And Special Tool
    G07782204Courtesy of FORD MOTOR CO.
  60. Using the Crankshaft Damper Holding Tool and an air impact wrench, remove the crankshaft pulley.
    • Remove and discard the crankshaft pulley bolt and washer.
    • Remove the crankshaft pulley.
    • Remove the diamond washer and discard.

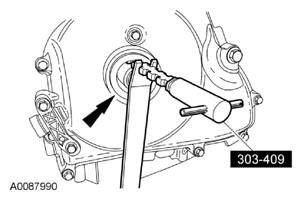

    61. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.
    Fig 60: Removing Crankshaft Front Oil Seal Using Oil Seal Remover
    G07782205Courtesy of FORD MOTOR CO.
  61. Using the Oil Seal Remover, remove the crankshaft front oil seal.
  62. Remove the 2 bolts and the CKP sensor.
    Fig 61: Locating Crankshaft Position (CKP) Sensor Mounting Bolts
    G07782206Courtesy of FORD MOTOR CO.
  63. Remove the bolts and the engine front cover.

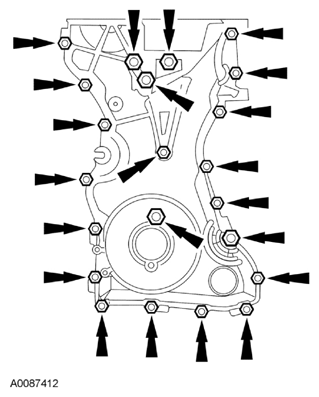

    Fig 62: Locating Engine Front Cover Bolts
    G07782207Courtesy of FORD MOTOR CO.
  64. Compress the timing chain tensioner in the following sequence.
    1. Using a small pick, release and hold the ratchet mechanism.
    2. While holding the ratchet mechanism in the released position, compress the tensioner by pushing the timing chain arm toward the tensioner.
    3. Insert a paper clip into the hole to retain the tensioner.

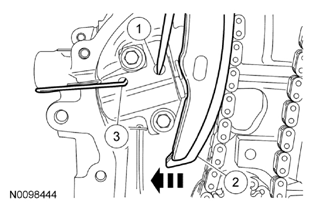

    Fig 63: Compressing Timing Chain Tensioner
    G07782208Courtesy of FORD MOTOR CO.
  65. Remove the 2 bolts and timing chain tensioner.

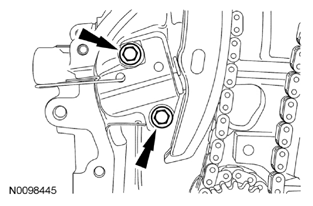

    Fig 64: Locating Timing Chain Tensioner Bolts
    G07782209Courtesy of FORD MOTOR CO.
  66. Remove the RH timing chain guide.

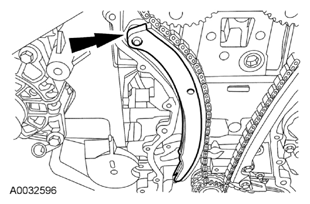

    Fig 65: Locating Timing Chain Tensioner Arm
    G07782210Courtesy of FORD MOTOR CO.
  67. Remove the timing chain.
    Fig 66: Identifying Timing Chain
    G07782211Courtesy of FORD MOTOR CO.
  68. Remove the bolts and the LH timing chain guide.

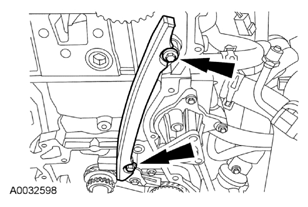

    Fig 67: Locating LH Timing Chain Guide Bolts
    G07782212Courtesy of FORD MOTOR CO.
    69. NOTE: Do not rely on the Camshaft Alignment Plate to prevent camshaft rotation. Damage to the tool or the camshaft can occur.

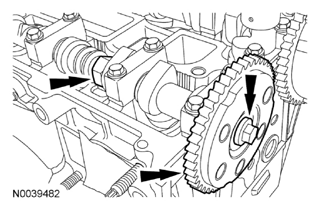

    Fig 68: Locating Flats On Camshaft, Bolt And Exhaust Camshaft Sprocket
    G07782213Courtesy of FORD MOTOR CO.
  69. Using the flats on the camshaft to prevent camshaft rotation, remove the bolt and the exhaust camshaft sprocket.
    70. NOTE: The Camshaft Alignment Plate 303-465 is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

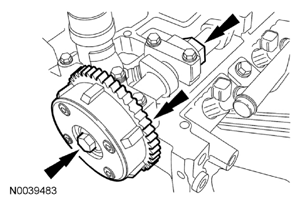

    Fig 69: Identifying Bolt And Camshaft Phaser And Sprocket
    G07782214Courtesy of FORD MOTOR CO.
  70. Using the flats on the camshaft to prevent camshaft rotation, remove the bolt and the intake camshaft phaser and sprocket.
  71. Remove the oil pump chain tensioner.
    1. Release the tension on the tensioner spring.
    2. Remove the tensioner and the shoulder bolts.

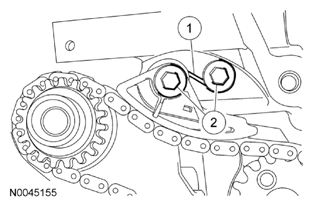

    Fig 70: Identifying Oil Pump Chain Drive Tensioner
    G07782215Courtesy of FORD MOTOR CO.
    72. NOTE: Remove and discard the crankshaft sprocket diamond washer located behind the crankshaft sprocket.
    NOTE: The oil pump chain sprocket must be held in place.

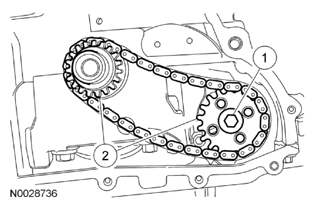

    Fig 71: Identifying Oil Pump Chain And Sprockets
    G07782216Courtesy of FORD MOTOR CO.
  72. Remove the oil pump chain and sprockets.
    1. Remove the bolt.
    2. Remove the chain and sprockets.
  73. Mark the position of the camshaft lobes on the No. 1 cylinder for assembly reference.

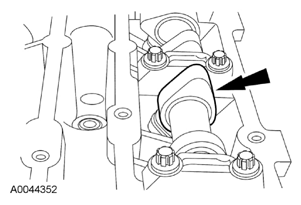

    Fig 72: Locating Camshaft Lobes
    G07782217Courtesy of FORD MOTOR CO.
  74. Remove the bolt and the Variable Camshaft Timing (VCT) solenoid.

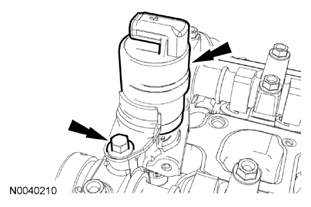

    Fig 73: Locating Variable Camshaft Timing Solenoid And Mounting Bolt
    G07782218Courtesy of FORD MOTOR CO.
  75. Remove the plug and the VCT system oil filter from the intake camshaft thrust cap.
    Fig 74: Locating Plug And VCT System Oil Filter
    G07782219Courtesy of FORD MOTOR CO.
    76. NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.
    NOTE: Mark the location and orientation of each camshaft bearing cap.

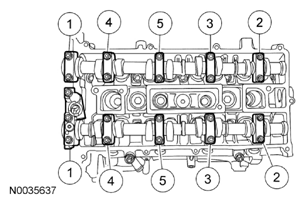

    Fig 75: Identifying Camshaft Bearing Cap Bolts Loosening Sequence
    G07782220Courtesy of FORD MOTOR CO.
  76. Remove the camshafts from the engine.
    • Loosen the camshaft bearing bolts in the sequence shown in illustration, one turn at a time. Repeat until all the tension is released.
    • Remove the camshaft bearing caps.
    • Remove the camshafts.
    77. NOTE: If the camshafts and valve tappets are to be reused, mark the location of the valve tappets to make sure they are assembled in their original positions.
    NOTE: The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.
  77. Remove and inspect the valve tappets. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION article.
  78. Remove the cylinder head.
    • Remove and discard the cylinder head bolts.
    • Remove the cylinder head.
    • Remove and discard the cylinder head gasket.

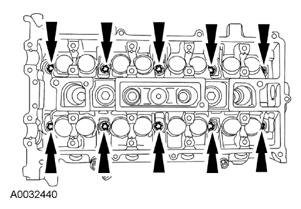

    Fig 76: Locating Cylinder Head Bolts
    G07782221Courtesy of FORD MOTOR CO.
  79. Support the cylinder heads on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION article.
  80. Remove the cylinder head alignment dowels.

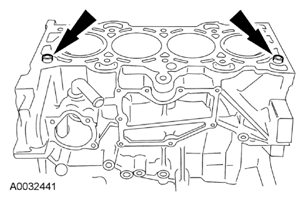

    Fig 77: Locating Cylinder Head Alignment Dowels
    G07782222Courtesy of FORD MOTOR CO.
  81. Remove the bolts and the oil pan.

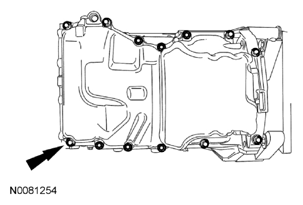

    Fig 78: Locating Oil Pan Bolts
    G07782223Courtesy of FORD MOTOR CO.
  82. Remove the bolts and the crankshaft rear oil seal with retainer.

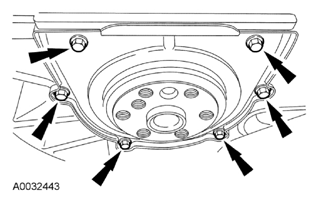

    Fig 79: Identifying Rear Crankshaft Seal And Bolts
    G07782224Courtesy of FORD MOTOR CO.
  83. Remove the bolts, oil pump pickup tube and gasket.

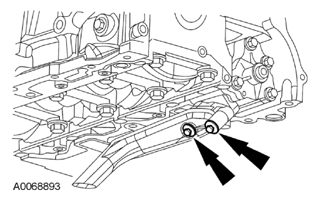

    Fig 80: Locating Oil Pump Pickup Tube Bolts
    G07782225Courtesy of FORD MOTOR CO.
  84. Remove the bolts and the oil pump.
    Fig 81: Identifying Oil Pump Assembly Bolts
    G07782226Courtesy of FORD MOTOR CO.
  85. Remove the bolts and the block-off plate.
    Fig 82: Locating Block-Off Plate Bolts
    G07782227Courtesy of FORD MOTOR CO.
  86. Make sure the Crankshaft TDC Timing Peg is still installed and the engine is still at Top Dead Center (TDC).
    • Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the Crankshaft TDC Timing Peg.
    Fig 83: Identifying Crankshaft TDC Timing Peg
    G07782228Courtesy of FORD MOTOR CO.
  87. Mark the balancer unit front shafts on the top for reference that the balancer unit is at TDC.

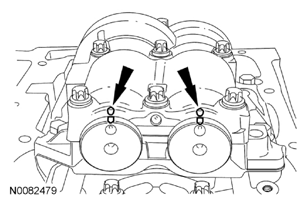

    Fig 84: Locating Balancer Unit And Shafts Reference Mark
    G07782229Courtesy of FORD MOTOR CO.
    88. NOTE: Due to the precision interior construction of the balancer unit, it should not be disassembled.

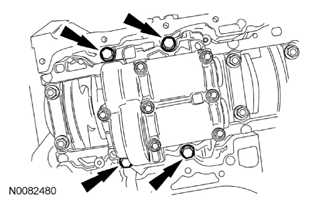

    Fig 85: Locating Balancer Unit Mounting Bolts
    G07782230Courtesy of FORD MOTOR CO.
  88. Remove the 4 bolts and the balancer unit.
  89. Remove the Crankshaft TDC Timing Peg.
    Fig 86: Identifying Crankshaft TDC Timing Peg
    G07782231Courtesy of FORD MOTOR CO.
  90. Before removing the pistons, inspect the top of the cylinder bores. If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad or equivalent, following manufacturer's instructions.
    91. NOTE: Clearly mark the connecting rods, connecting rod caps and connecting rod bearings in numerical order for correct orientation for reassembly.

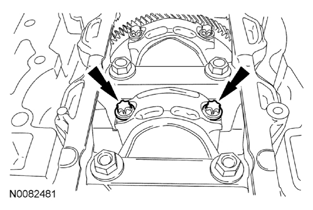

    Fig 87: Locating Connecting Rod Cap Bolts
    G07782232Courtesy of FORD MOTOR CO.
  91. Remove the connecting rod cap bolts and cap.
    92. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod.
    Fig 88: Removing Piston/Rod Assembly From Engine Block Using Connecting Rod Installer
    G07782233Courtesy of FORD MOTOR CO.
  92. Using the Connecting Rod Installer, remove the piston/rod assembly from the engine block.
    • Repeat the previous 2 steps until all the piston/rod assemblies are removed from the engine block.
  93. Remove the bolts in the sequence shown in illustration.
    • Remove the main bearing beam.
    • Discard the bolts.
    Fig 89: Identifying Crankshaft Cap Bolts Removing Sequence
    G07782234Courtesy of FORD MOTOR CO.
  94. Remove the crankshaft from the engine block.
    Fig 90: View Of Crankshaft In Cylinder Block
    G07782235Courtesy of FORD MOTOR CO.
    95. NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.

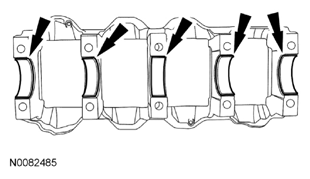

    Fig 91: Identifying Crankshaft Main Bearings
    G07782236Courtesy of FORD MOTOR CO.
  95. Remove the main bearings from the main bearing beam.
    96. NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.
    NOTE: The center bulkhead has the thrust bearing.

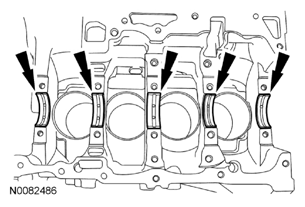

    Fig 92: Identifying Crankshaft Main Bearings
    G07782237Courtesy of FORD MOTOR CO.
  96. Remove the main bearings from the cylinder block.
    97. NOTE: If the oil squirters are being reused, mark them in order for correct location during reassembly.
    NOTE: The front bulkhead does not have an oil squirter.

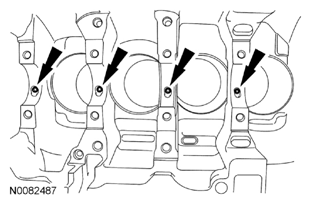

    Fig 93: Locating Oil Squirters
    G07782238Courtesy of FORD MOTOR CO.
  97. Remove the 4 oil squirters.
  98. Inspect the cylinder block, main bearing beam, pistons and connecting rods. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION article.
scientia non olet · About LEMON Manuals
