Cylinder Head - RH

WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL

Item Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) WSS-M2C945-A
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain engine comes equipped with either a composite RH timing chain guide requiring the timing chain to ride on the outer side of the guide or a stamped steel RH timing chain guide requiring the timing chain to ride on the inner side of the guide. All roller timing chain engine replacement RH timing chain guides will be the stamped steel design.

All engines

  1. Install a new gasket, the RH cylinder head and 8 new bolts. Tighten in the sequence shown in illustration in 5 stages:
    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten to 35 Nm (26 lb-ft).
    • Stage 3: Tighten 90 degrees.
    • Stage 4: Tighten 90 degrees.
    • Stage 5: Tighten 45 degrees.

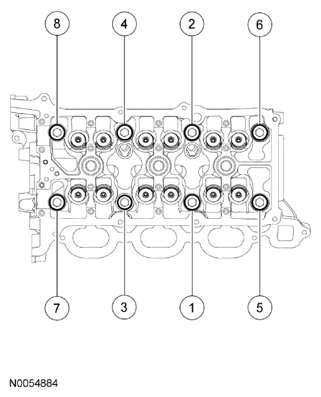

    Fig 1: Identifying RH Cylinder Head Bolts Tightening Sequence
    G07785501Courtesy of FORD MOTOR CO.
  2. Install the new M6 bolt.
    • Tighten to 10 Nm (89 lb-in).

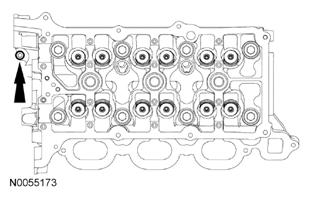

    Fig 2: Locating M6 Bolt
    G07785502Courtesy of FORD MOTOR CO.
  3. NOTE: The valve tappets must be installed in their original positions.
    NOTE: Coat the valve tappets with clean engine oil prior to installation.

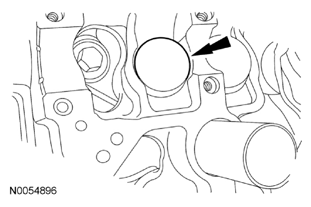

    Fig 3: Locating Valve Tappets
    G07785503Courtesy of FORD MOTOR CO.
  4. Install the valve tappets.
  5. Install and connect the Cylinder Head Temperature (CHT) sensor jumper harness.

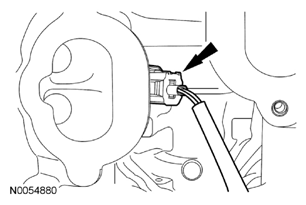

    Fig 4: Locating CHT Sensor Jumper Harness
    G07785504Courtesy of FORD MOTOR CO.
  6. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

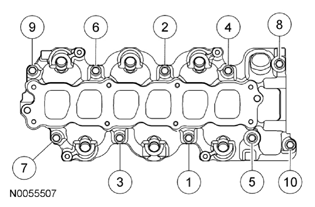

    Fig 5: Identifying Lower Intake Manifold Bolts Tightening Sequence
    G07785505Courtesy of FORD MOTOR CO.
  7. Using new gaskets, install the lower intake manifold and the 10 bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).
  8. Using a new gasket and O-ring seal, install the thermostat housing and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

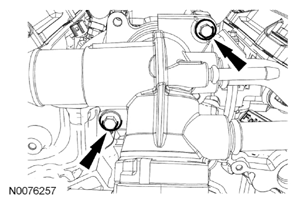

    Fig 6: Locating Thermostat Housing-To-Lower Intake Manifold Bolts
    G07785506Courtesy of FORD MOTOR CO.
  9. Connect the coolant bypass hose to the thermostat housing.

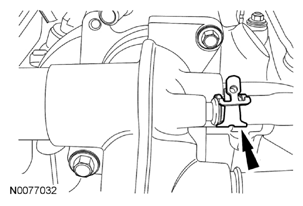

    Fig 7: Locating Coolant Bypass Hose
    G07785507Courtesy of FORD MOTOR CO.
  10. NOTE: Use O-ring seals that are made of special fuel-resistant material. The use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.
    NOTE: The upper and lower O-ring seals are not interchangeable.

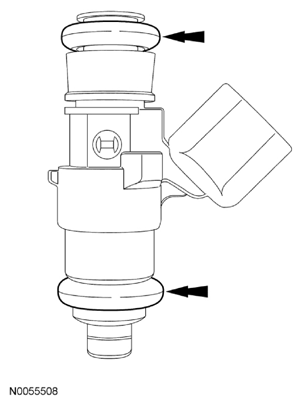

    Fig 8: Locating Fuel Injector O-Ring Seals
    G07785508Courtesy of FORD MOTOR CO.
  11. Install new fuel injector O-ring seals.
    • Remove the retaining clips and separate the fuel injectors from the fuel rail.
    • Remove and discard the O-ring seals.
    • Install new O-ring seals and lubricate with clean engine oil.
    • Install the fuel injectors and the retaining clips onto the fuel rail.
  12. Install the fuel rail and injectors as an assembly and install the 4 bolts.
    • Tighten to 10 Nm (89 lb-in).

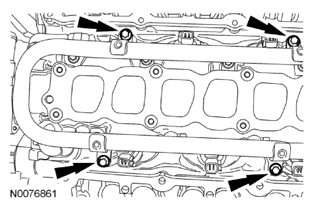

    Fig 9: Identifying Fuel Rail And Injectors Assembly Bolts
    G07785509Courtesy of FORD MOTOR CO.
  13. Install the RH Camshaft Position (CMP) sensor and the bolt.
    • Tighten to 10 Nm (89 lb-in).

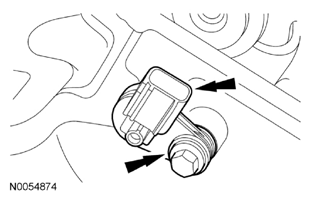

    Fig 10: Locating RH CMP Sensor And Bolt
    G07785510Courtesy of FORD MOTOR CO.
  14. NOTE: Align the bracket with the index mark made during removal.

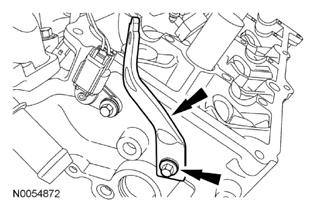

    Fig 11: Locating Upper Intake Manifold Support Bracket And Bolt
    G07785511Courtesy of FORD MOTOR CO.
  15. Install the upper intake manifold support bracket and the bolt.
    • Tighten to 10 Nm (89 lb-in).
  16. Install the engine lifting eye and the 2 bolts.
    • Tighten to 24 Nm (18 lb-ft).

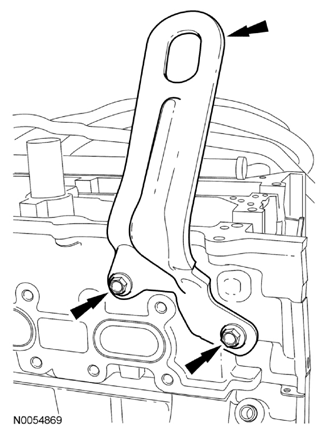

    Fig 12: Locating Engine Lifting Eye And Bolts
    G07785512Courtesy of FORD MOTOR CO.
  17. Install the RH secondary timing chain tensioner and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

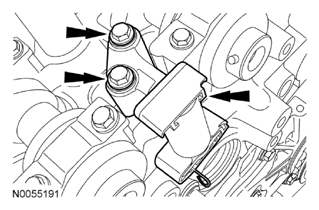

    Fig 13: Locating RH Secondary Timing Chain Tensioner And Bolts
    G07785513Courtesy of FORD MOTOR CO.
  18. NOTE: The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain engine comes equipped with either a composite RH timing chain guide requiring the timing chain to ride on the outer side of the guide or a stamped steel RH timing chain guide requiring the timing chain to ride on the inner side of the guide. All roller timing chain engine replacement RH timing chain guides will be the stamped steel design.

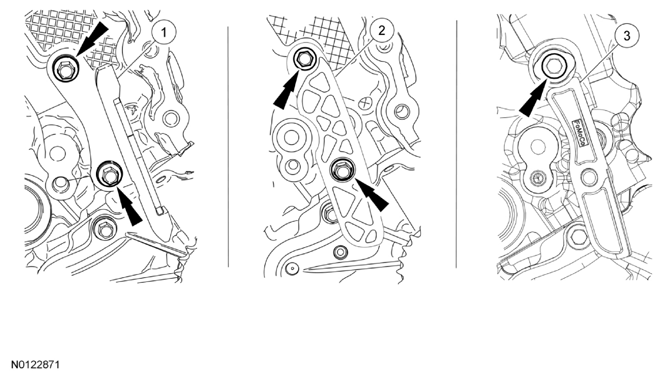

    Fig 14: Locating Bolts And RH Timing Chain Guide
    G07785514Courtesy of FORD MOTOR CO.
  19. Install the RH timing chain guide and bolt(s). Tighten to 10 Nm (89 lb-in).
    1. Roller timing chain stamped steel RH guide.
    2. Roller timing chain composite RH guide.
    3. Inverted tooth timing chain RH guide.
  20. Install 6 new RH exhaust manifold studs.
    • Tighten to 12 Nm (106 lb-in).

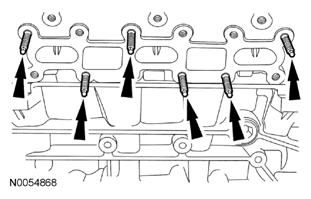

    Fig 15: Locating RH Exhaust Manifold Studs
    G07785515Courtesy of FORD MOTOR CO.
  21. NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.

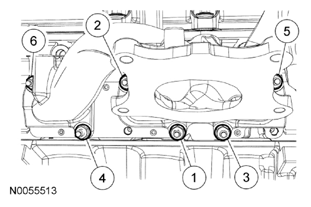

    Fig 16: Identifying RH Exhaust Manifold Nuts Tightening Sequence
    G07785516Courtesy of FORD MOTOR CO.
  22. Using a new gasket, install the RH exhaust manifold and 6 new nuts. Tighten in 2 stages in the sequence shown in illustration:
    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten to 25 Nm (18 lb-ft).
  23. Install the RH exhaust manifold heat shield and the 3 bolts.
    • Tighten to 10 Nm (89 lb-in).

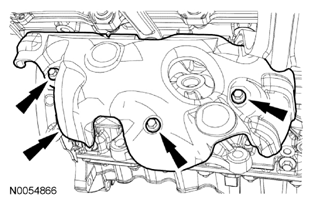

    Fig 17: Locating RH Exhaust Manifold Heat Shield Bolts
    G07785517Courtesy of FORD MOTOR CO.
  24. Install the RH cylinder block drain plug or, if equipped, the block heater.
    • Tighten the cylinder block drain plug to 10 Nm (89 lb-in) plus an additional 720 degrees.
    • Tighten the block heater to 40 Nm (30 lb-ft).

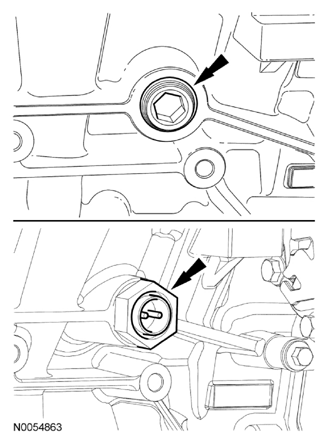

    Fig 18: Locating RH Cylinder Block Drain Plug And Block Heater
    G07785518Courtesy of FORD MOTOR CO.

    All-Wheel Drive (AWD) vehicles

  25. NOTE: Do not tighten the 4 catalytic converter nuts at this time.
    Fig 19: Locating RH Catalytic Converter Nuts
    G07785519Courtesy of FORD MOTOR CO.
  26. Using a new gasket, install the RH catalytic converter and 4 new nuts.
  27. Install the 2 RH catalytic converter bracket bolts.
    • Tighten the 4 catalytic converter nuts to 40 Nm (30 lb-ft).
    • Tighten the 2 catalytic converter brackets to 20 Nm (177 lb-in).

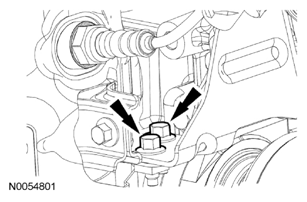

    Fig 20: Locating RH Catalytic Converter Bracket Bolts
    G07785520Courtesy of FORD MOTOR CO.

    Front Wheel Drive (FWD) vehicles

  28. Using a new gasket, install the RH catalytic converter and 4 new nuts.
    • Tighten to 40 Nm (30 lb-ft).
    Fig 21: Locating RH Catalytic Converter Nuts
    G07785521Courtesy of FORD MOTOR CO.

    All engines

  29. Install the LH cylinder block drain plug.
    • Tighten to 16 Nm (142 lb-in) plus an additional 180 degrees.

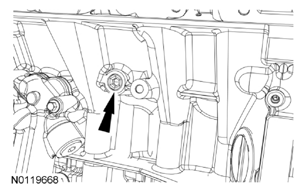

    Fig 22: Locating LH Cylinder Block Drain Plug
    G07785522Courtesy of FORD MOTOR CO.
  30. Using a new gasket, install the LH catalytic converter and 4 new nuts (3 shown in illustration).
    • Tighten to 40 Nm (30 lb-ft).

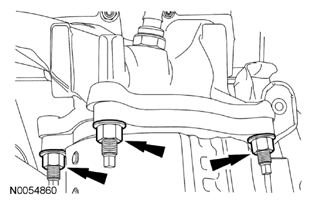

    Fig 23: Locating LH Catalytic Converter Nuts
    G07785523Courtesy of FORD MOTOR CO.
  31. Install the 2 LH catalytic converter bracket bolts.
    • Tighten to 20 Nm (177 lb-in).

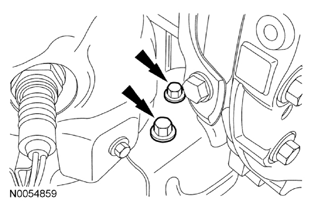

    Fig 24: Locating LH Catalytic Converter Bracket Bolts
    G07785524Courtesy of FORD MOTOR CO.
  32. Connect the LH Catalyst Monitor Sensor (CMS) sensor electrical connector.

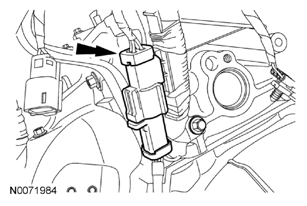

    Fig 25: Locating LH Catalyst Monitor Sensor (CMS) Electrical Connector
    G07785525Courtesy of FORD MOTOR CO.
  33. Connect the CHT sensor electrical connector.

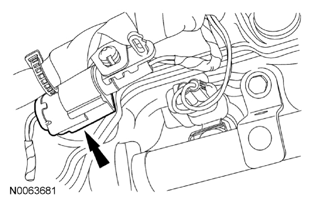

    Fig 26: Locating Cylinder Head Temperature (CHT) Sensor Electrical Connector
    G07785526Courtesy of FORD MOTOR CO.
  34. Connect the 6 fuel injector electrical connectors (3 shown in illustration).

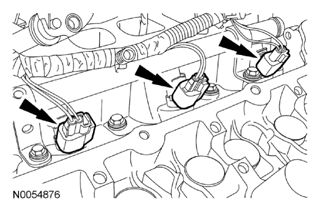

    Fig 27: Locating Fuel Injector Electrical Connectors
    G07785527Courtesy of FORD MOTOR CO.
  35. Install the Power Steering Pressure (PSP) tube bracket and bolt.
    • Tighten to 10 Nm (89 lb-in).

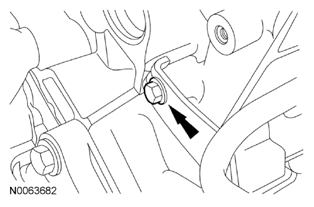

    Fig 28: Locating PSP Tube Bracket Bolt At RH Cylinder Head
    G07785528Courtesy of FORD MOTOR CO.
  36. Connect the RH CMP sensor electrical connector.

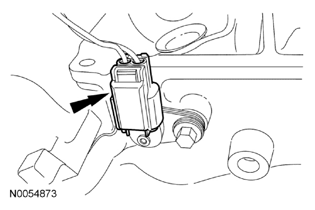

    Fig 29: Locating RH Camshaft Position (CMP) Sensor Electrical Connector
    G07785529Courtesy of FORD MOTOR CO.
  37. Connect the RH HO2S electrical connector.
    Fig 30: Locating RH Heated Oxygen Sensor (HO2S) Electrical Connector
    G07785530Courtesy of FORD MOTOR CO.
  38. If equipped, install the block heater wiring harness onto the engine.
    • Connect the block heater electrical connector and install the heat shield.

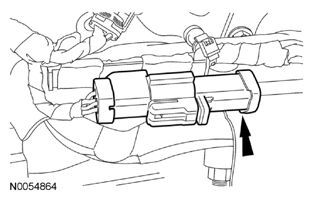

    Fig 31: Locating Block Heater Electrical Connector And Heat Shield
    G07785531Courtesy of FORD MOTOR CO.
  39. Install the RH camshafts. For additional information, refer to CAMSHAFT  in this service information.
