Cylinder Head - LH
WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) | WSS-M2C945-A |
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE:
The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain upper LH guide differs in design than the inverted tooth upper LH guide.
All vehicles

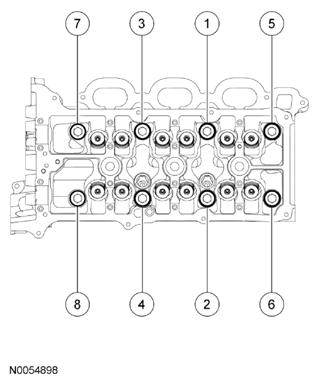

- Install a new gasket, the LH cylinder head and 8 new bolts. Tighten in the sequence shown in illustration in 5 stages:
- Stage 1: Tighten to 20 Nm (177 lb-in).
- Stage 2: Tighten to 35 Nm (26 lb-ft).
- Stage 3: Tighten 90 degrees.
- Stage 4: Tighten 90 degrees.
- Stage 5: Tighten 45 degrees.

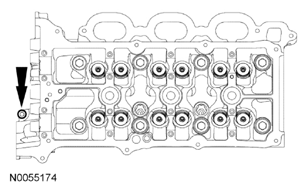

- Install the new M6 bolt.
- Tighten to 10 Nm (89 lb-in).

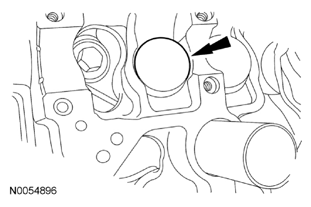

- Install the valve tappets.

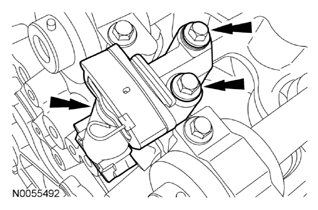

- Install the LH secondary timing chain tensioner and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

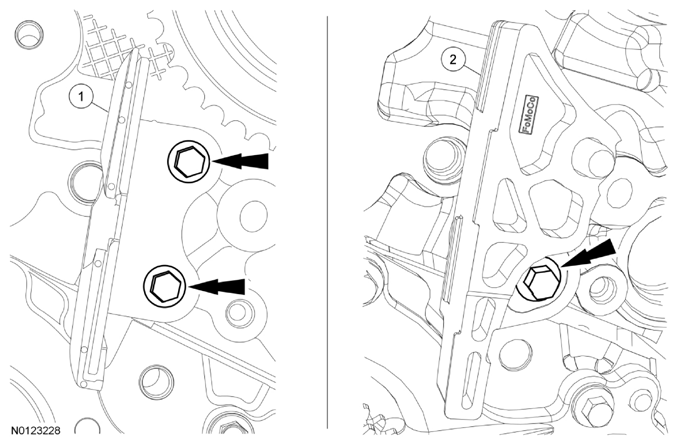

- Install the upper LH primary timing chain guide and the bolt(s). Tighten to 10 Nm (89 lb-in).
- Roller timing chain upper LH guide.
- Inverted tooth timing chain upper LH guide.

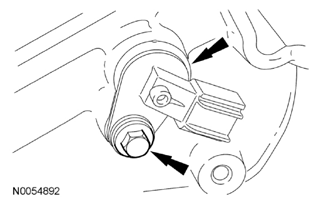

- Install LH Camshaft Position (CMP) sensor and the bolt.
- Tighten to 10 Nm (89 lb-in).

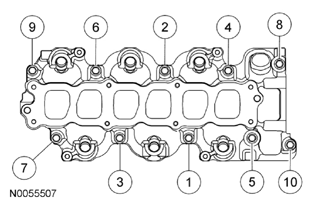

- Using new gaskets, install the lower intake manifold and the 10 bolts.
- Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).

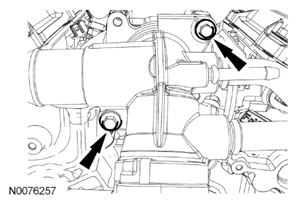

- Using a new gasket and O-ring seal, install the thermostat housing and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

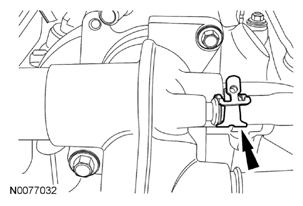

- Connect the coolant bypass hose to the thermostat housing.

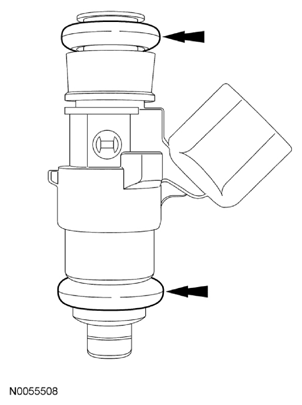

- Install new fuel injector O-ring seals.
- Remove the retaining clips and separate the fuel injectors from the fuel rail.
- Remove and discard the O-ring seals.
- Install new O-ring seals and lubricate with clean engine oil.
- Install the fuel injectors and the retaining clips onto the fuel rail.

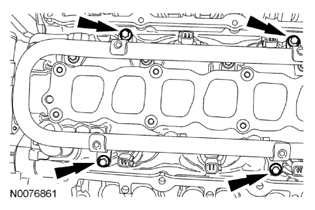

- Install the fuel rail and injectors as an assembly and install the 4 bolts.
- Tighten to 10 Nm (89 lb-in).

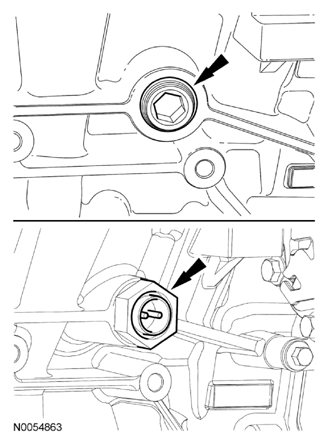

- Install the RH cylinder block drain plug or, if equipped, the block heater.
- Tighten the cylinder block drain plug to 10 Nm (89 lb-in) plus an additional 720 degrees.
- Tighten the block heater to 40 Nm (30 lb-ft).
All-Wheel Drive (AWD) vehicles
- Using a new gasket, install the RH catalytic converter and 4 new nuts.
- Install the 2 RH catalytic converter bracket bolts.
- Tighten the 4 catalytic converter nuts to 40 Nm (30 lb-ft).
- Tighten the 2 catalytic converter brackets to 20 Nm (177 lb-in).
Front Wheel Drive (FWD) vehicles
- Using a new gasket, install the RH catalytic converter and 4 new nuts.
- Tighten to 40 Nm (30 lb-ft).
All vehicles

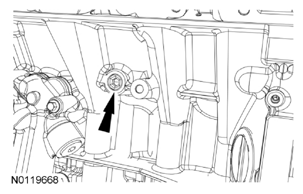

- Install the LH cylinder block drain plug.
- Tighten to 16 Nm (142 lb-in) plus an additional 180 degrees.

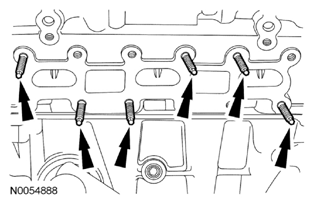

- Install 6 new LH exhaust manifold studs.
- Tighten to 12 Nm (106 lb-in).

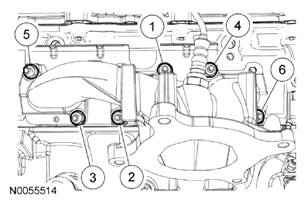

- Using a new gasket, install the LH exhaust manifold and 6 new nuts. Tighten in 2 stages in the sequence shown in illustration:
- Stage 1: Tighten to 20 Nm (177 lb-in).
- Stage 2: Tighten to 25 Nm (18 lb-ft).

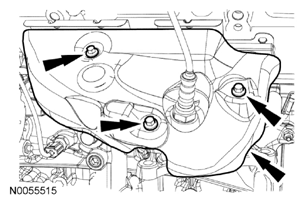

- Install the LH exhaust manifold heat shield and the 3 bolts.
- Tighten to 10 Nm (89 lb-in).

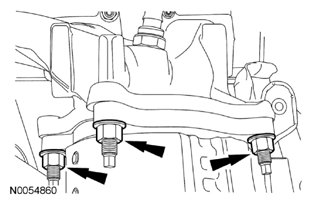

- Using a new gasket, install the LH catalytic converter and 4 new nuts (3 shown in illustration).
- Tighten to 40 Nm (30 lb-ft).

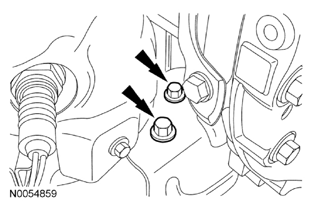

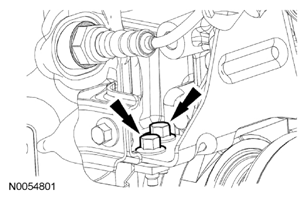

- Install the 2 LH catalytic converter bracket bolts.
- Tighten to 20 Nm (177 lb-in).

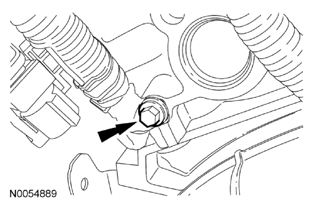

- Install the wiring harness retainer bolt on the rear of the LH cylinder head.
- Tighten to 10 Nm (89 lb-in).

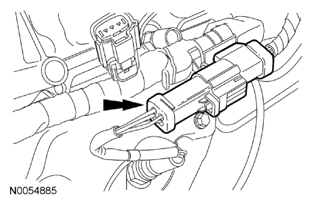

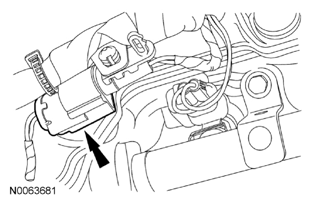

- Connect the LH Catalyst Monitor Sensor (CMS) sensor electrical connector.

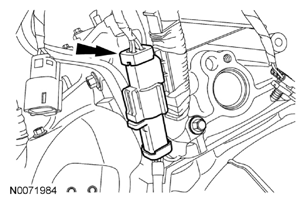

- Connect the LH Heated Oxygen Sensor (HO2S) electrical connector.

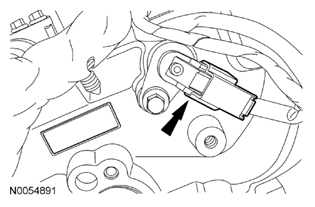

- Connect the LH CMP sensor electrical connector.
- Connect the Cylinder Head Temperature (CHT) sensor electrical connector.

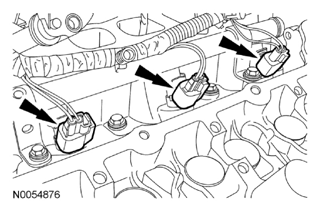

- Connect the 6 fuel injector electrical connectors (3 shown in illustration).

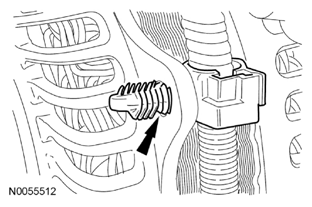

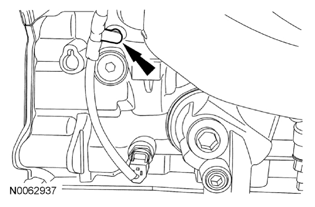

- Attach the wiring harness pin-type retainer.

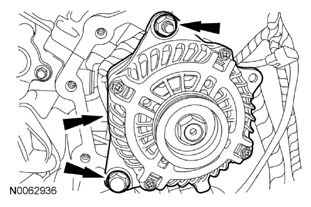

- Install the generator, the bolt and the nut.
- Tighten to 48 Nm (35 lb-ft).
- Attach the wiring harness retainer to the generator.

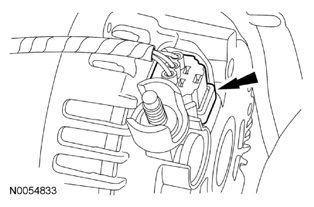

- Connect the generator electrical connector.
- Connect the generator B+ cable and install the nut.
- Tighten to 12 Nm (106 lb-in).

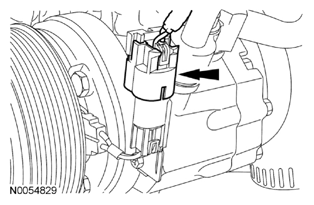

- Connect the A/C compressor electrical connector.
- If equipped, install the block heater wiring harness onto the engine.
- Connect the block heater electrical connector and install the heat shield.
- Install the LH camshafts. For additional information, refer to CAMSHAFT in this service information.
NOTE:
The valve tappets must be installed in their original positions.
NOTE:
Coat the valve tappets with clean engine oil prior to installation.
NOTE:
The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain upper LH guide differs in design than the inverted tooth upper LH guide.
NOTE:
If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
NOTE:
Use O-ring seals that are made of special fuel-resistant material. The use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.
NOTE:
The upper and lower O-ring seals are not interchangeable.
NOTE:
Do not tighten the 4 catalytic converter nuts at this time.
NOTE:
Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.
