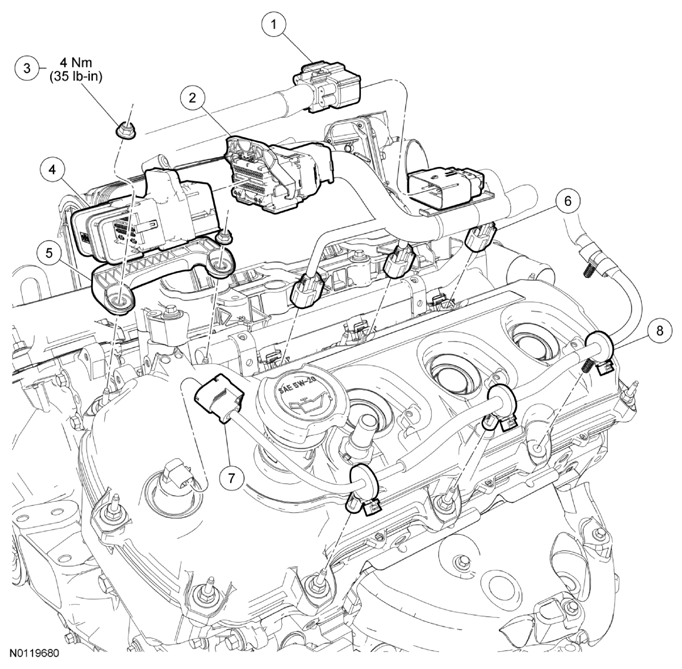

Valve Cover - LH (View 1 of 2): Notes
WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Engine control wiring harness electrical connector (part of 12C508) |
| 2 | - | Engine control wiring harness electrical connector (part of 12C508) |
| 3 | W520100 | Wiring harness retaining bracket nut (2 required) |
| 4 | - | Engine control wiring harness electrical connector (part of 12C508) |
| 5 | - | Wiring harness retaining bracket (part of 12C508) |
| 6 | - | LH fuel injector electrical connector (3 required) (part of 12C508) |
| 7 | - | LH Variable Camshaft Timing (VCT) electrical connector (part of 12C508) |
| 8 | W700497 | Engine control wiring harness retainer (part of 12C508) |
