Removal and Installation
WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.

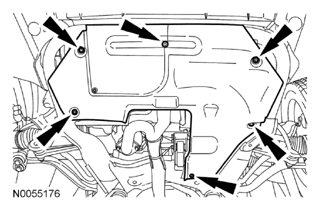

- If equipped, remove the 6 screws and the underbody shield.
- Disconnect the Engine Oil Pressure (EOP) switch electrical connector.
- Remove the EOP switch.
- To install, tighten to 14 Nm (124 lb-in) plus an additional 180 degrees.
- To install, reverse the removal procedure.
- Apply thread sealant with PTFE to the EOP switch threads prior to installation.
