Crankshaft Rear Seal: Removal

WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Remove the flexplate. For additional information, refer to FLEXPLATE in this service information.
Remove the crankshaft sensor ring.
Using the Crankshaft Rear Oil Seal Remover and Slide Hammer, remove and discard the crankshaft rear seal.
- Clean all sealing surfaces with metal surface prep.

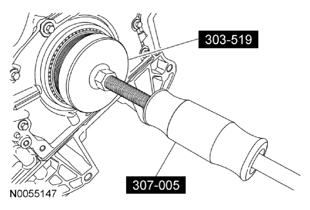

Fig 1: Removing Crankshaft Rear Seal Using Crankshaft Rear Oil Seal Remover And Slide Hammer
Courtesy of FORD MOTOR CO.
