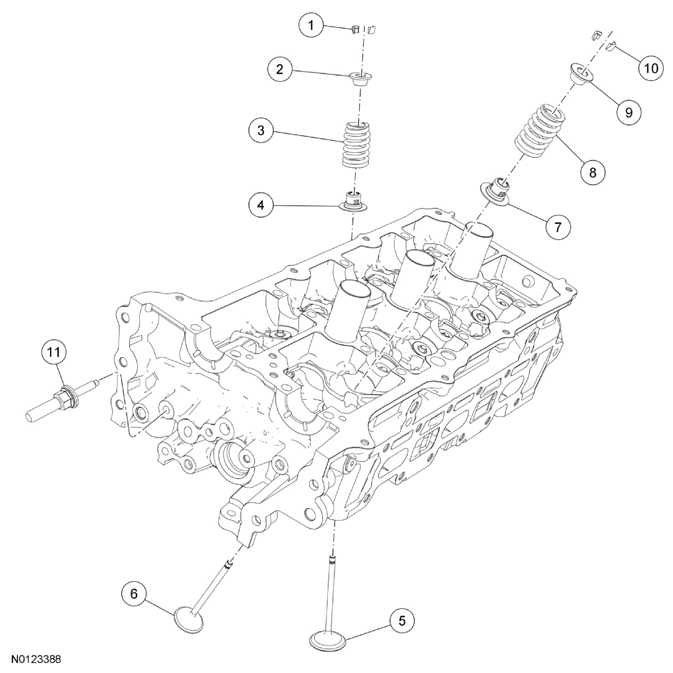

Cylinder Head - LH
WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 6518 | Intake valve spring retainer key (12 required) |
| 2 | 6514 | Intake valve spring retainer (6 required) |
| 3 | 6513 | Intake valve spring (6 required) |
| 4 | 6A517 | Intake valve stem seal (6 required) |
| 5 | 6505 | Intake valve (6 required) |
| 6 | 6507 | Exhaust valve (6 required) |
| 7 | 6A517 | Exhaust valve stem seal (6 required) |
| 8 | 6513 | Exhaust valve spring (6 required) |
| 9 | 6514 | Exhaust valve spring retainer (6 required) |
| 10 | 6518 | Exhaust valve spring retainer key (12 required) |
| 11 | W714090 | Timing chain tensioner arm pin |
