Oil Pump: Installation

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the oil pump and install the bolts.
    • Tighten in the sequence shown in the illustration to 10 Nm (89 lb-in).

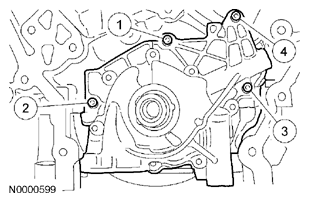

    Fig 1: Identifying Oil Pump Bolts Tightening Sequence
    G07781444Courtesy of FORD MOTOR CO.
  2. Install the oil pump screen and pickup tube. For additional information, refer to ENGINE LUBRICATION COMPONENTS - EXPLODED VIEW  and OIL PUMP SCREEN AND PICKUP TUBE  in this service information.
  3. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS  in this service information.
