Material Specifications
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |

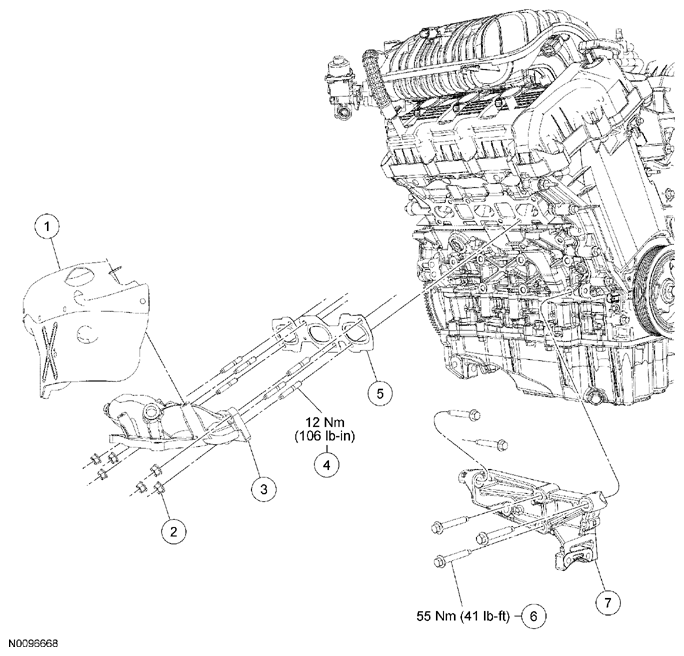

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 5E258 | RH catalytic converter heat shield |
| 2 | W701706 | RH exhaust manifold nut (6 required) |
| 3 | 9430 | RH exhaust manifold |
| 4 | W701732 | RH exhaust manifold stud (6 required) |
| 5 | 9448 | RH exhaust manifold gasket |
| 6 | W500724 | Power Transfer Unit (PTU) bracket bolt (5 required) |
| 7 | 7A444 | PTU bracket |
