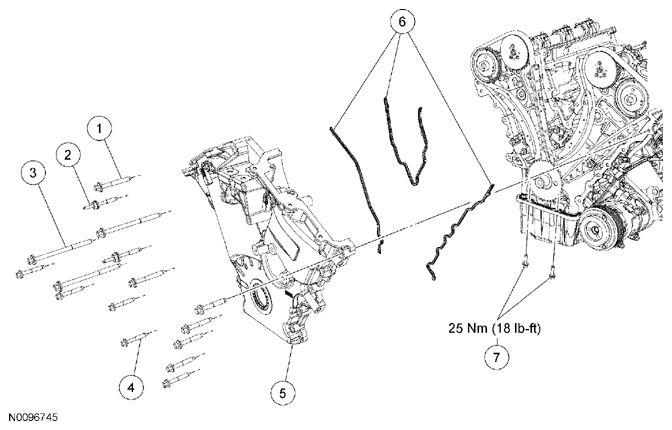

Engine Front Cover (View 3 of 3)
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W708222 | Engine front cover bolt (2 required) |
| 2 | W710030 | Engine front cover stud bolt (2 required) |
| 3 | W708221 | Engine front cover bolt (2 required) |
| 4 | W701525 | Engine front cover bolt (10 required) |
| 5 | 6019 | Engine front cover |
| 6 | 6D081 | Engine front cover gaskets |
| 7 | W709678 | Oil pan-to-front cover bolts |
