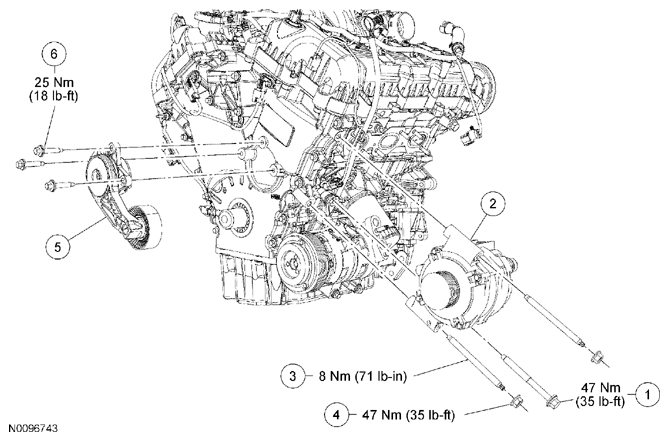

Engine Front Cover (View 1 of 3)
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION TABLE
| Item |
Part Number |
Description |
| 1 |
W709986 |
Generator bolt |
| 2 |
10300 |
Generator |
| 3 |
W710416 |
Generator stud |
| 4 |
W520414 |
Generator stud nut (2 required) |
| 5 |
6B209 |
Accessory drive belt tensioner |
| 6 |
W503297 |
Accessory drive belt tensioner bolt (3 required) |
