Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
The air bag supplemental restraint system (SRS) is designed to provide increased collision protection for front seat occupants in addition to that provided by the 3-point safety belt system. Safety belt use is necessary to obtain the best occupant protection and to receive the full advantage of the SRS.
The SRS deployable components are shown in the following illustration.

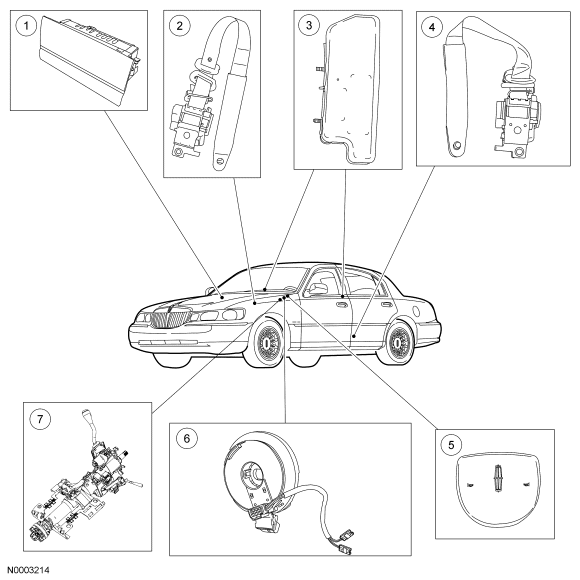

Fig 1: Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Deployable Components
| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger air bag module |
| 2 | 611B08 | Passenger safety belt retractor pretensioner |
| 3 | 611D10/11 | Passenger/driver seat side air bag module |
| 4 | 611B09 | Driver safety belt retractor pretensioner |
| 5 | 043B13 | Driver air bag module |
| 6 | 14A664 | Clockspring |
| 7 | 3C529 | Deployable steering column squib (part of steering column) |

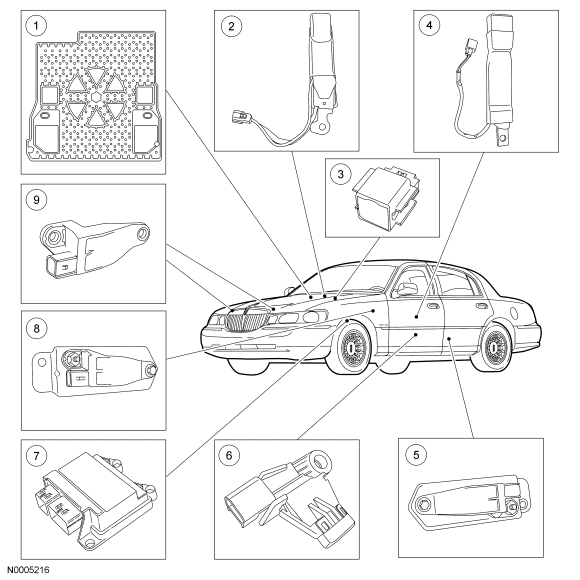

The SRS sensor components are shown in the following illustration.
| Item | Part Number | Description |
|---|---|---|
| 1 | 603B02 | Occupant classification sensor (OCS) |
| 2 | 61202 | Passenger seat safety belt buckle with usage detection switch and belt tension sensor |
| 3 | 14B418 | Passenger air bag deactivation (PAD) indicator |
| 4 | 61202 | Driver seat safety belt buckle with usage detection switch |
| 5 | 14B345 | Driver seat impact sensor |
| 6 | 14B416 | Seat position sensor |
| 7 | 14B321 | Restraints control module (RCM) |
| 8 | 14B345 | Passenger side impact sensor |
| 9 | 14B006 | Front impact severity sensor (2 required) |
