Instrument Cluster (IC): Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

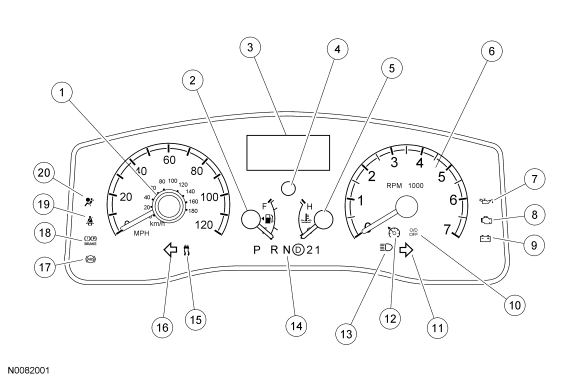

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Speedometer |
| 2 | - | Fuel gauge |
| 3 | - | Message center |
| 4 | - | Severity indicator |
| 5 | - | Temperature gauge |
| 6 | - | Tachometer |
| 7 | - | Low oil pressure warning indicator |
| 8 | - | Malfunction indicator lamp (MIL) |
| 9 | - | Charging system warning indicator |
| 10 | - | O/D off indicator |
| 11 | - | RH turn indicator |
| 12 | - | Speed control indicator |
| 13 | - | High beam indicator |
| 14 | - | PRNDL indicator |
| 15 | - | Traction assist indicator |
| 16 | - | LH turn indicator |
| 17 | - | ABS warning indicator |
| 18 | - | Brake warning indicator |
| 19 | - | Safety belt warning indicator |
| 20 | - | Air bag warning indicator |
The instrument cluster (IC) contains a message center, gauges, indicator lamps, engine idle hour meter (Limousine only) and warning lamps that are designed to provide the driver with a system status and to alert the driver that certain conditions exist in the vehicle. The message center features include the odometer, trip odometer, and information display. The information display occupies either the top 2 or top 3 lines of the message center depending on the font size chosen. These displays are independent of other messages with the exception of the redundant odometer which is shown on the bottom portion of the message center.
