Evaporative Emissions Canister Vent Control Solenoid Connector - C4116

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

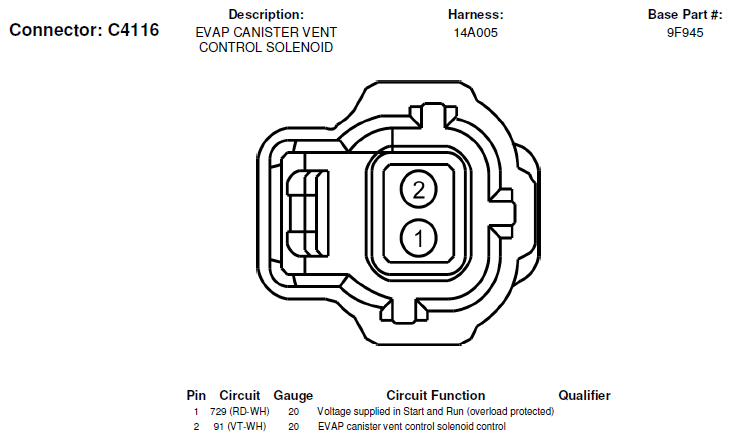

Fig 1: Evaporative Emissions Canister Vent Control Solenoid Connector End View (C4116)
G06414400Courtesy of FORD MOTOR CO.
