Fuel Tank Filler Pipe Assembly
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

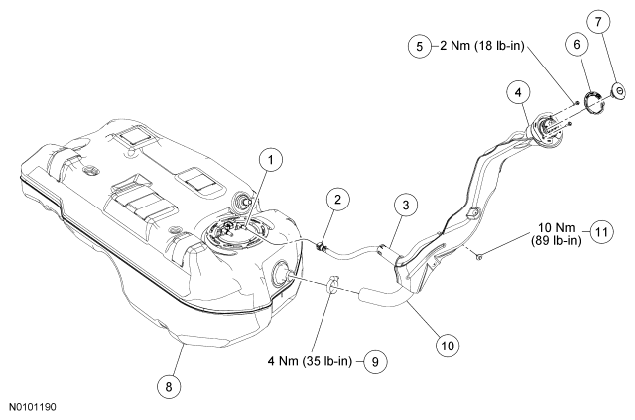

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9H307 | Fuel Pump (FP) module |
| 2 | - | Fuel tank filler pipe recirculation tube-to-FP module quick connect coupling (part of 9034) |
| 3 | 9A117 | Recirculation tube insulator |
| 4 | 9034 | Fuel tank filler pipe assembly |
| 5 | W713115 | Fuel tank filler pipe flange screw (2 required) |
| 6 | 9K072 | Information bezel |
| 7 | 9C268 | Fuel tank filler pipe locking cap (optional) |
| 8 | 9002 | Fuel tank |
| 9 | - | Fuel tank filler pipe hose clamp (part of 9034) |
| 10 | - | Fuel tank filler pipe hose (part of 9034) |
| 11 | W525173 | Fuel tank filler pipe bracket bolt |
