Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

If installing new transmission fluid cooler tubes, remove the transmission fluid cooler tube secondary latches and the retainer from the old transmission fluid cooler tubes and install them on the new transmission fluid cooler tubes.

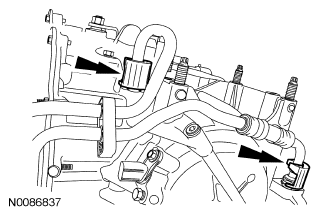

Fig 1: Locating Transmission Fluid Cooler Tubes
Courtesy of FORD MOTOR CO.
Position the transmission fluid cooler tubes in place. Install the transmission fluid cooler tubes in the transaxle by inserting the tube into the fitting until a click is heard/felt. Pull back to confirm connection is secure and install the transmission fluid cooler tube secondary latches.

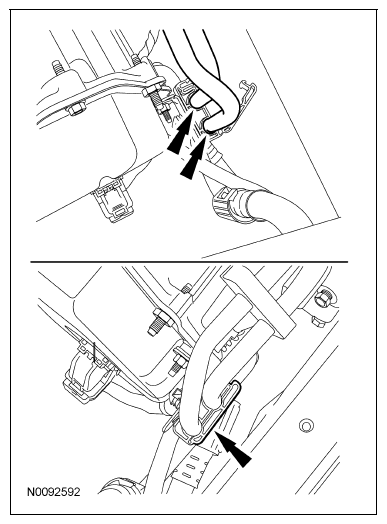

Fig 2: Locating Transmission Fluid Cooler Tubes
Courtesy of FORD MOTOR CO.
Compress the constant tension clamps and install the transmission fluid cooler tubes on the transmission fluid cooler.

Fig 3: Locating Transmission Fluid Cooler Tubes
Courtesy of FORD MOTOR CO.
Install the transmission fluid cooler tubes in the retaining clip and close the retaining clip.

Fig 4: Locating Transmission Fluid Cooler Tubes In Retaining Clip
Courtesy of FORD MOTOR CO.
Install the left side splash shield.
Install the front bumper cover. For additional information, refer to BUMPER COVER -- FRONT .
Check the transmission fluid level and add transmission fluid as necessary.
