Selector Lever Bezel: Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Selector lever removed for clarity.
    Fig 1: Locating Selector Lever Bezel
    G06098144Courtesy of FORD MOTOR CO.
  1. Install the selector lever bezel. Be sure the tabs are correctly fastened on the selector lever.
  2. Install the selector lever bezel light in the selector lever bezel.

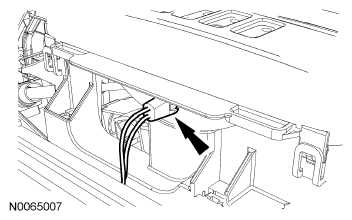

    Fig 2: Locating Selector Lever Bezel Light
    G06098143Courtesy of FORD MOTOR CO.
  3. Install the selector lever knob and the 2 screws.

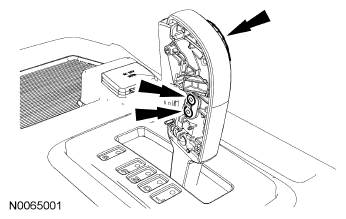

    Fig 3: Locating Selector Lever Knob Screws
    G06098132Courtesy of FORD MOTOR CO.
  4. Install the selector lever knob trim covers.
    Fig 4: Removing/Installing Selector Lever Knob Trim Covers
    G06098141Courtesy of FORD MOTOR CO.
  5. Connect the power outlet electrical connector.
    Fig 5: Locating Power Outlet Electrical Connector
    G06098107Courtesy of FORD MOTOR CO.
  6. Install the center console finish panel.

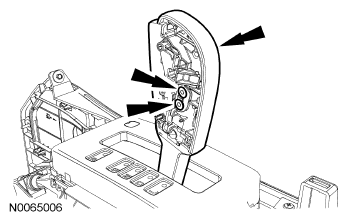

    Fig 6: Locating Selector Lever Knob Screws
    G06098142Courtesy of FORD MOTOR CO.
  7. Install the center console compartment tray.
    Fig 7: Locating Center Console Compartment Tray
    G06098055Courtesy of FORD MOTOR CO.
  8. Install the selector lever trim ring.
    Fig 8: Locating Selector Lever Trim Ring
    G06098104Courtesy of FORD MOTOR CO.
