Passive Anti-Theft System (PATS) Transceiver: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

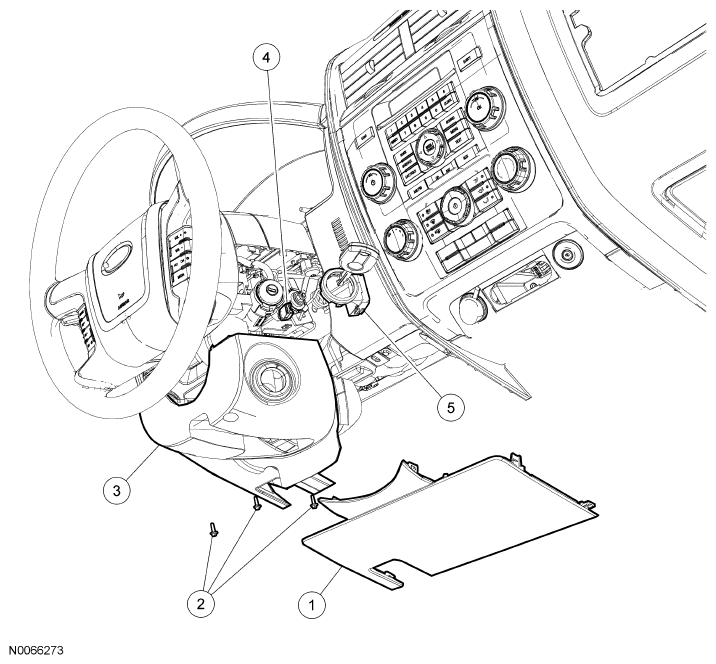

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7804459 | Steering column opening cover |
| 2 | W707658 | Lower steering column shroud screws (3 required) |
| 3 | 3530 | Lower steering column shroud |
| 4 | - | Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
| 5 | 15607 | PATS transceiver |
