Parking Brake Cable - Rear, RH: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

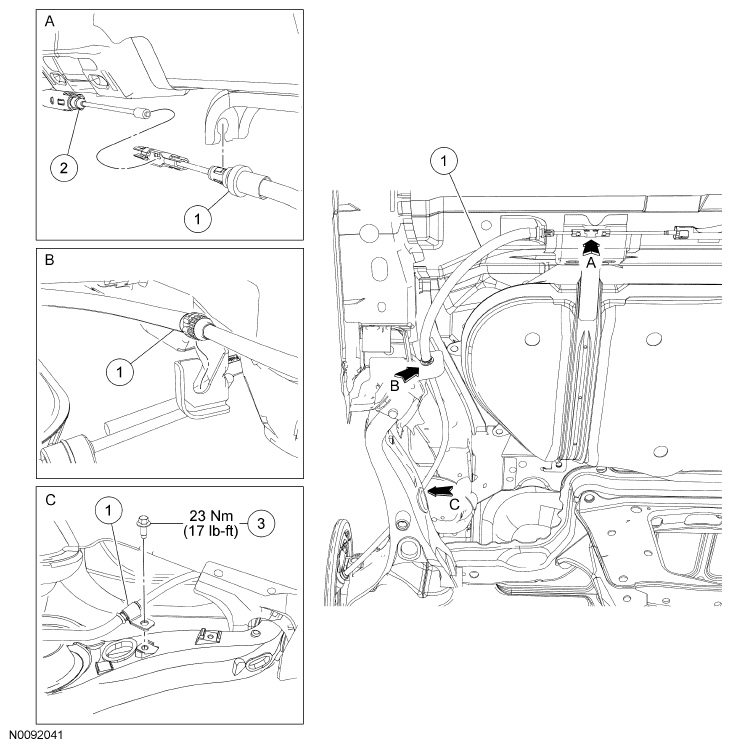

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications - Rear, RH

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	2A604 RR	Parking brake cable
2	-	Parking brake cable connector (part of 2A604)
3	W500222	Parking brake cable bracket bolt
