Roof Opening Panel Drain Hose Routing

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Passenger side shown in illustration, driver side similar.

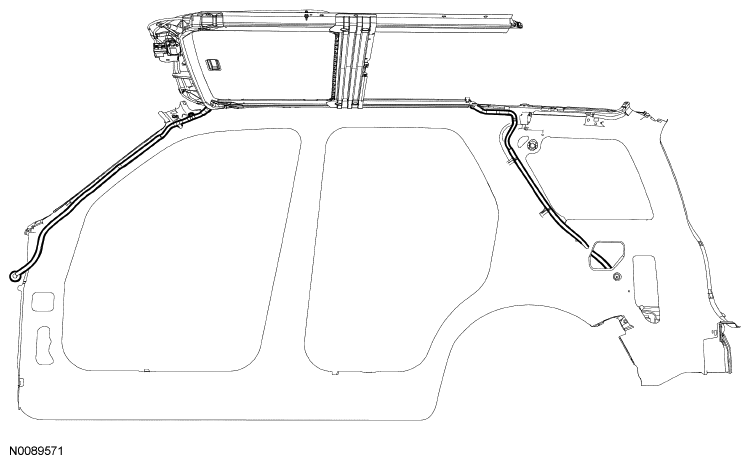

Fig 1: Roof Opening Panel Drain Hose Routing

Courtesy of FORD MOTOR CO.
