Removal and Installation
WARNING: This page is about a different car, the 2005 Ford Pickup and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

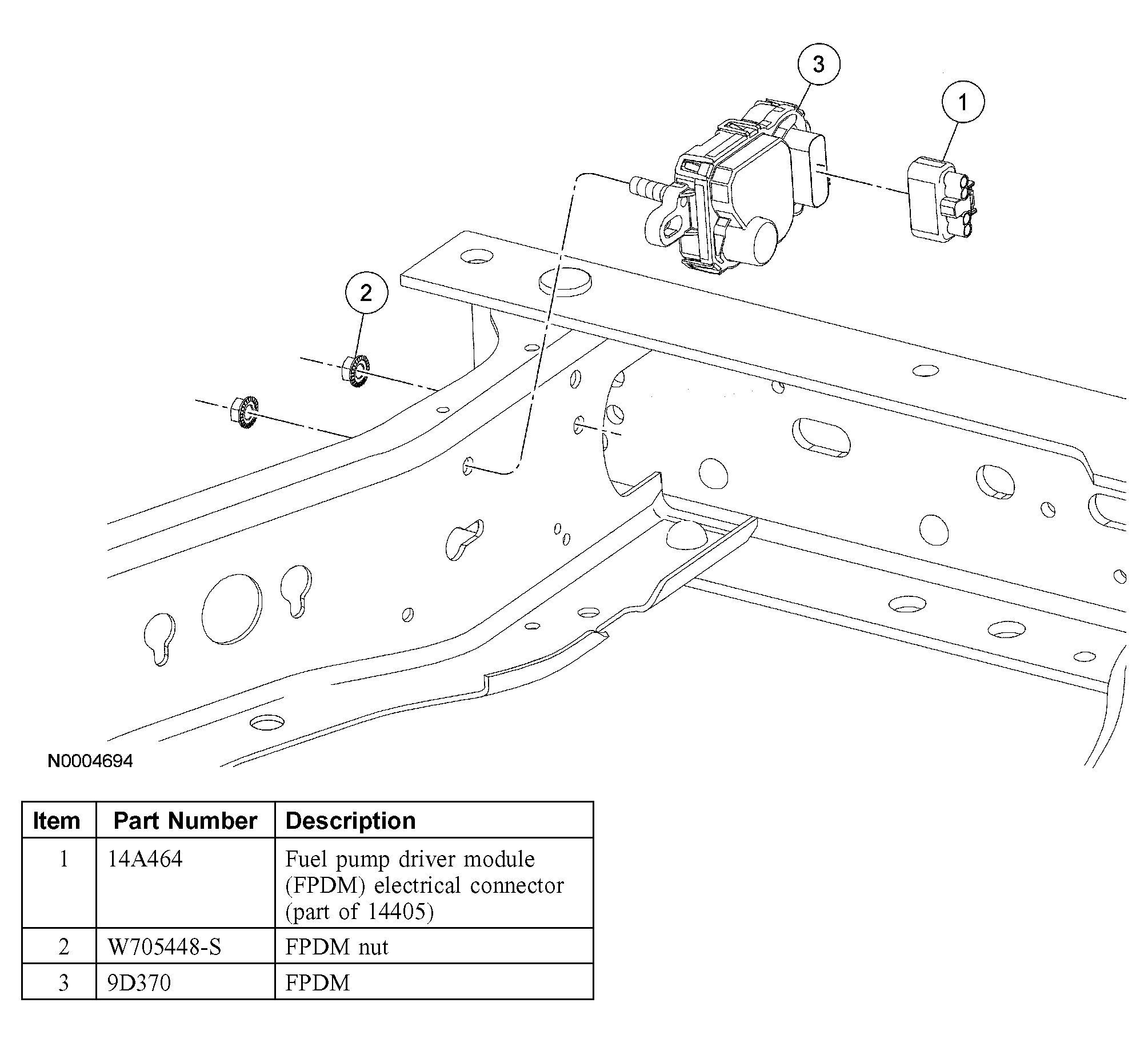

- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Disconnect the FPDM electrical connector.
- Remove the FPDM nuts.
- To install, tighten to 10 Nm (89 lb-in).
- Remove the FPDM.
- To install, reverse the removal procedure.
