Transaxle NVH Shield

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

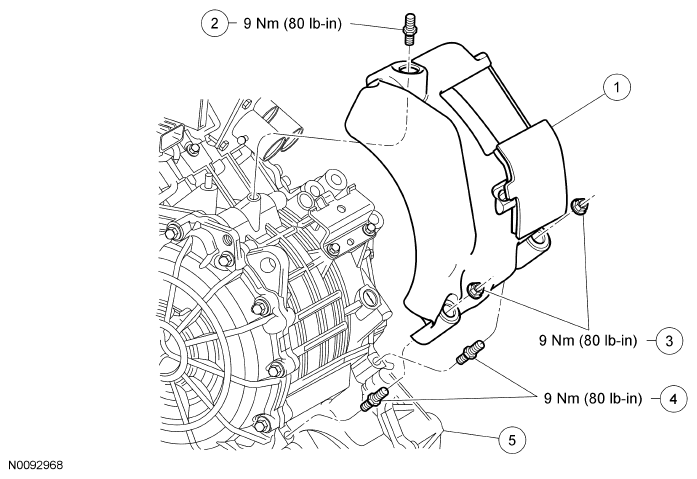

Fig 1: Transaxle NVH Shield With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	7222	NVH shield
2	W707095	NVH shield stud
3	N805320	NVH shield nuts (2 required)
4	N808764	NVH shield studs (2 required)
5	7000	Transaxle

Disable the high voltage electrical system. For additional information, refer to GENERAL PROCEDURES .
Remove the rear transmission insulator bracket. For additional information, refer to TRANSAXLE SUPPORT INSULATOR - REAR .
Remove the wiring harness retainer and selector lever cable from the studs.

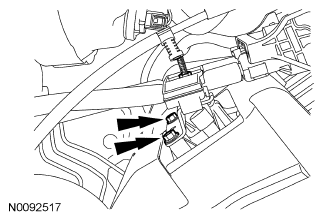

Fig 2: Locating Selector Lever Cable And Wiring Harness Retainer
Courtesy of FORD MOTOR CO.
Remove the NVH shield stud.
- To install, tighten to 9 Nm (80 lb-in).

  Fig 3: Locating NVH Shield Stud
  Courtesy of FORD MOTOR CO.
Remove the 2 transaxle harness electrical connector bracket bolts.
- To install, tighten to 9 Nm (80 lb-in).

  Fig 4: Locating Transaxle Harness Electrical Connector Bracket Bolts
  Courtesy of FORD MOTOR CO.
Remove the stud bolt and disconnect the transaxle harness electrical connector.
- To install, tighten to 10 Nm (89 lb-in).

  Fig 5: Locating Transaxle Harness Electrical Connector And Stud Bolt
  Courtesy of FORD MOTOR CO.
Remove the 2 nuts from the bottom of the NVH shield.
- To install, tighten to 9 Nm (80 lb-in).

  Fig 6: Locating NVH Shield Nuts
  Courtesy of FORD MOTOR CO.
Remove the NVH shield.
To install, reverse removal procedure.
