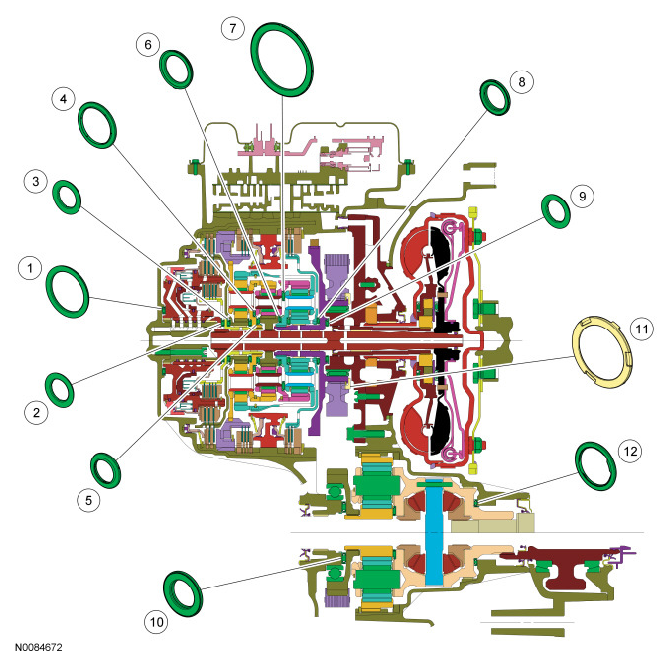

Bearing and Thrust Washer Locations
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7F242 | No. 1 thrust bearing |
| 2 | 7D234 | No. 2 thrust bearing |
| 3 | 7D234 | No. 3 thrust bearing |
| 4 | 7G177 | No. 5 thrust bearing |
| 5 | 7C096 | No. 6 thrust bearing |
| 6 | 7C096 | No. 7 thrust bearing |
| 7 | 7C096 | No. 8 thrust bearing |
| 8 | 7D234 | No. 10 thrust bearing |
| 9 | 7D234 | No. 11 thrust bearing |
| 10 | 7G355 | No. 12 thrust bearing |
| 11 | 7G099 | No. 13 thrust washer |
| 12 | 7G112 | No. 15 thrust bearing |
The No. 4 thrust bearing is part of the rear planetary carrier assembly. The No. 9 thrust bearing is part of the front planetary carrier assembly. The No. 14 thrust bearing is part of the differential assembly.
