Valve Seals: Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Install the valve stem seal installation sleeve.

Fig 1: Identifying Valve Stem Seal Installation Sleeve
Courtesy of FORD MOTOR CO.
Using the Valve Stem Oil Seal Installer, install the valve seal.

Fig 2: Installing Valve Seal
Courtesy of FORD MOTOR CO.

NOTE: Check the seating of the valve collet.

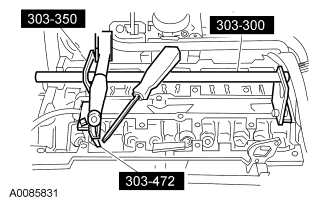

Using the Valve Spring Compressors, install the valve spring.
- Insert the valve spring and the valve spring retainer.
- Compress the valve spring and install the valve collet using some grease and a small screwdriver.

  Fig 3: Inserting Valve Spring And Valve Spring Retainer
  Courtesy of FORD MOTOR CO.
Disconnect the compressed air supply.
Install the spark plugs. For additional information, refer to ENGINE IGNITION - 2.5L .
Repeat the appropriate removal and installation steps for all of the other cylinders.
Coat the valve tappets with clean engine oil and insert them.
Install the camshafts. For additional information, refer to CAMSHAFTS .
