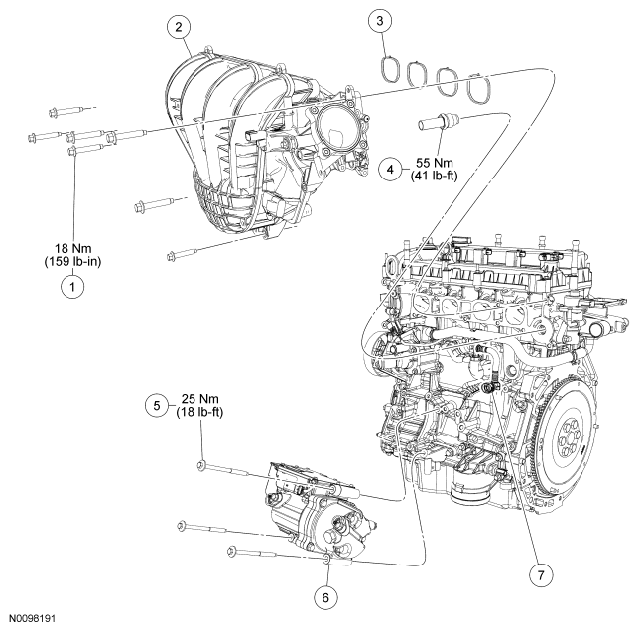

Intake Manifold (View 2 of 2)
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. PART NUMBER REFERENCE
| Item |
Part Number |
Description |
| 1 |
W500311 |
Intake manifold bolt (7 required) |
| 2 |
9424 |
Intake manifold |
| 3 |
9441 |
Intake manifold gasket (4 required) |
| 4 |
9E470 |
EGR tube |
| 5 |
W500326 |
A/C compressor bolt (3 required) |
| 6 |
19703 |
A/C compressor |
| 7 |
6758 |
PCV hose connector |
