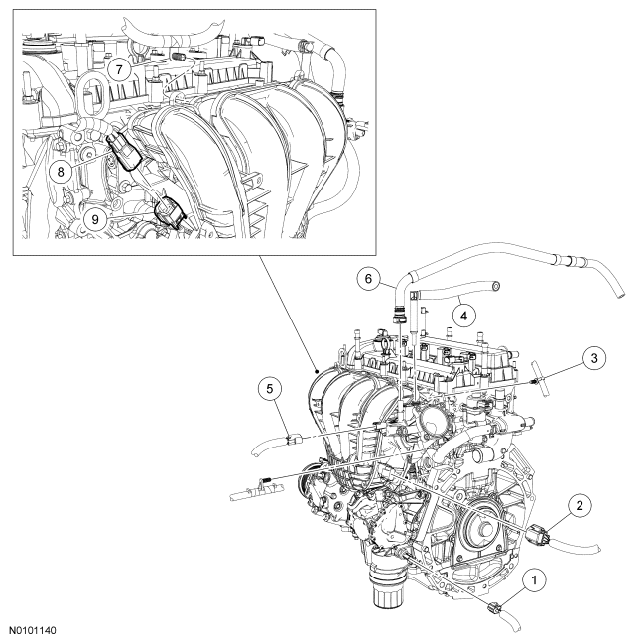

Intake Manifold (View 1 of 2)
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Engine Oil Pressure (EOP) switch electrical connector (part of 12A581) |
| 2 | 14A464 | Manifold Absolute Pressure (MAP) sensor electrical connector (part of 12A581) |
| 3 | - | Wiring harness retainer (2 required) |
| 4 | 9C482 | Brake booster vacuum tube |
| 5 | - | Evaporative Emission (EVAP) canister purge valve electrical connector |
| 6 | 6C324 | EVAP tube-to- EVAP canister purge valve quick connect coupling |
| 7 | - | Block heater wiring harness retainer (if equipped) |
| 8 | 14A464 | Knock Sensor (KS) electrical connector (male side, part of 12A581) |
| 9 | 14A464 | KS electrical connector (female side, part of 12A581) |
