Removal and Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING -- ESCAPE, ESCAPE HYBRID, MARINER & MARINER HYBRID .
Remove the engine coolant degas bottle. For additional information, refer to DEGAS BOTTLE .
Remove the DC/DC converter. For additional information, refer to DIRECT CURRENT/DIRECT CURRENT (DC/DC) CONVERTER .
Install the Engine Support Bar.

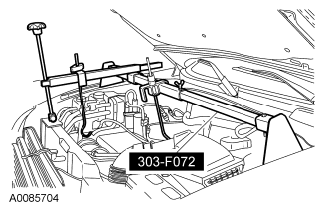

Fig 1: Installing Special Tool (303-F072) On Engine
Courtesy of FORD MOTOR CO.
Remove the engine mount bracket bolt.
- To install, tighten to 115 Nm (85 lb-ft).
Use the Engine Support Bar to raise the engine 25 mm (0.98 in).

Fig 2: Installing Special Tool (303-F072) On Engine
Courtesy of FORD MOTOR CO.
Remove the 3 nuts and the engine mount bracket.
- To install, tighten to 115 Nm (85 lb-ft).
Remove the A/C tube bracket nut.
- To install, tighten to 10 Nm (89 lb-in).
Rotate the A/C tube brackets off of the studs.
- Reposition the A/C tubes to access the engine mount bolt.
Remove the 3 bolts and the engine mount.
- To install, tighten to 48 Nm (35 lb-ft).
To install, reverse the removal procedure.
