Valve Cover - RH: Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If the valve cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with metal surface prep. Failure to follow this procedure can cause future oil leakage.

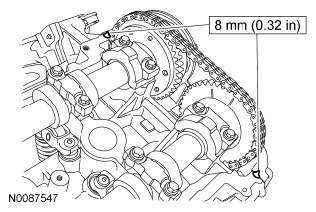

    Fig 1: Identifying Silicone Gasket And Sealant Area
    G06389268Courtesy of FORD MOTOR CO.
  1. Apply a bead of silicone gasket and sealant in 2 places where the engine front cover meets the cylinder head.
  2. Position the valve cover and install the 11 bolts and 3 stud bolts.
    • Tighten in the sequence shown to 10 Nm (89 lb-in).

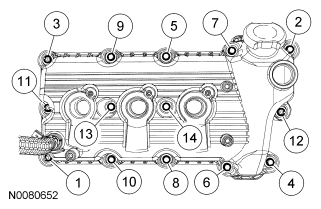

      Fig 2: Identifying Valve Cover Bolts In Sequence
      G06389269Courtesy of FORD MOTOR CO.
  3. Attach the CKP  wiring harness retainer on the stud.
  4. Connect the VCT  electrical connector.
  5. Attach the 3 main engine control wiring harness retainers to the valve cover.
  6. Attach the 3 main engine control wiring harness retainers to the valve cover stud bolts.
  7. Install the RH ignition coil-on-plugs. For additional information, refer to IGNITION COIL-ON-PLUG .
