Flexplate and Rear Seal
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

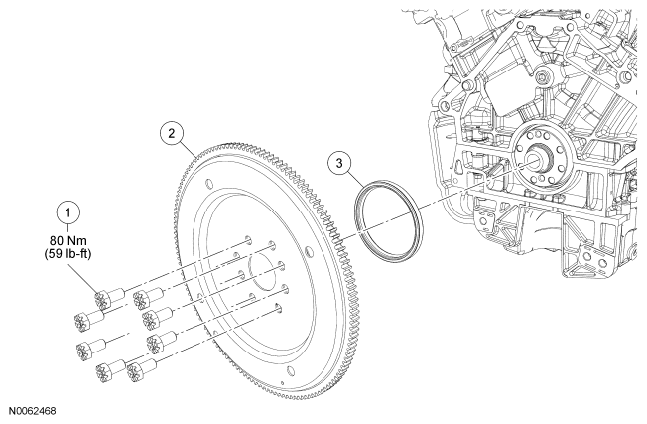

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
W701559 |
Flexplate bolt (8 required) |
| 2 |
6375 |
Flexplate |
| 3 |
6701 |
Crankshaft rear oil seal |
- For additional information, refer to the procedures.
