Upper Radiator Support Brackets

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

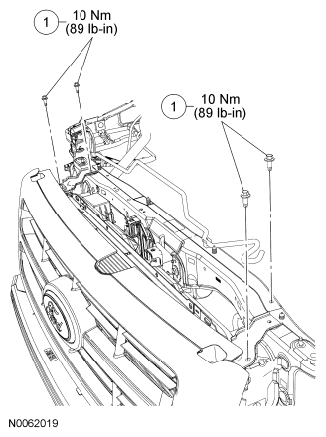

Fig 1: Upper Radiator Support Brackets Replacement Components With Torque Specifications
G06389376Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W707399 Upper radiator support bracket bolts
