Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Clean all sealing surfaces with metal surface prep.
  1. Apply clean engine oil to the seal lip and seal bore before installing the seal.
  2. Using the Front Cover Oil Seal Installer and the Crankshaft Vibration Damper Installer, install a new crankshaft front seal.

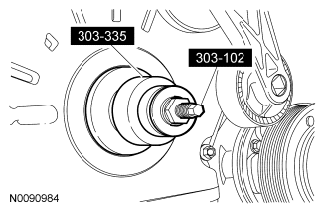

    Fig 1: Installing Crankshaft Front Seal Using Front Cover Oil Seal Installer And Crankshaft Vibration Damper Installer
    G06389281Courtesy of FORD MOTOR CO.
  3. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
