Intake Manifold: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

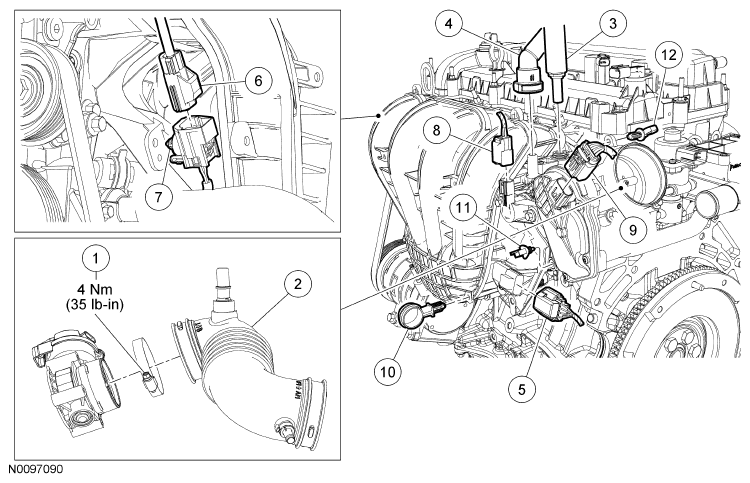

Intake Manifold (View 1 of 2)
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 9C632 | Air Cleaner (ACL) outlet pipe-to-Throttle Body (TB) clamp |
| 2 | 9B642 | ACL outlet pipe |
| 3 | 19D848 | Vacuum supply hose |
| 4 | 9D289 | Fuel vapor return hose |
| 5 | 14A464 | Manifold Absolute Pressure (MAP) sensor electrical connector (part of 12C508) |
| 6 | 14A464 | Knock Sensor (KS) electrical connector (part of 12C508) |
| 7 | 14A624 | Wire harness pin-type retainer (part of 12C508) |
| 8 | 14A464 | Evaporative Emission (EVAP) canister purge valve electrical connector (part of 12C508) |
| 9 | 14A464 | Electronic throttle control electrical connector (part of 12C508) |
| 10 | 18K580 | Heater hose retainer |
| 11 | 13A506 | Wire harness pin-type retainer |
| 12 | 14197 | Wire harness pin-type retainer |

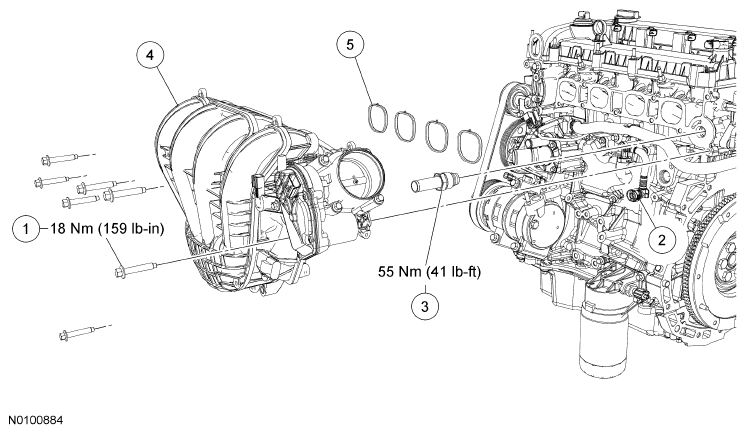

Intake Manifold (View 2 of 2)
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | W500311 | Intake manifold bolt (7 required) |
| 2 | 6A785 | Crankcase vent oil separator tube (part of 6A785) |
| 3 | 9E470 | EGR tube |
| 4 | 9424 | Intake manifold |
| 5 | 9461 | Intake manifold gasket |
